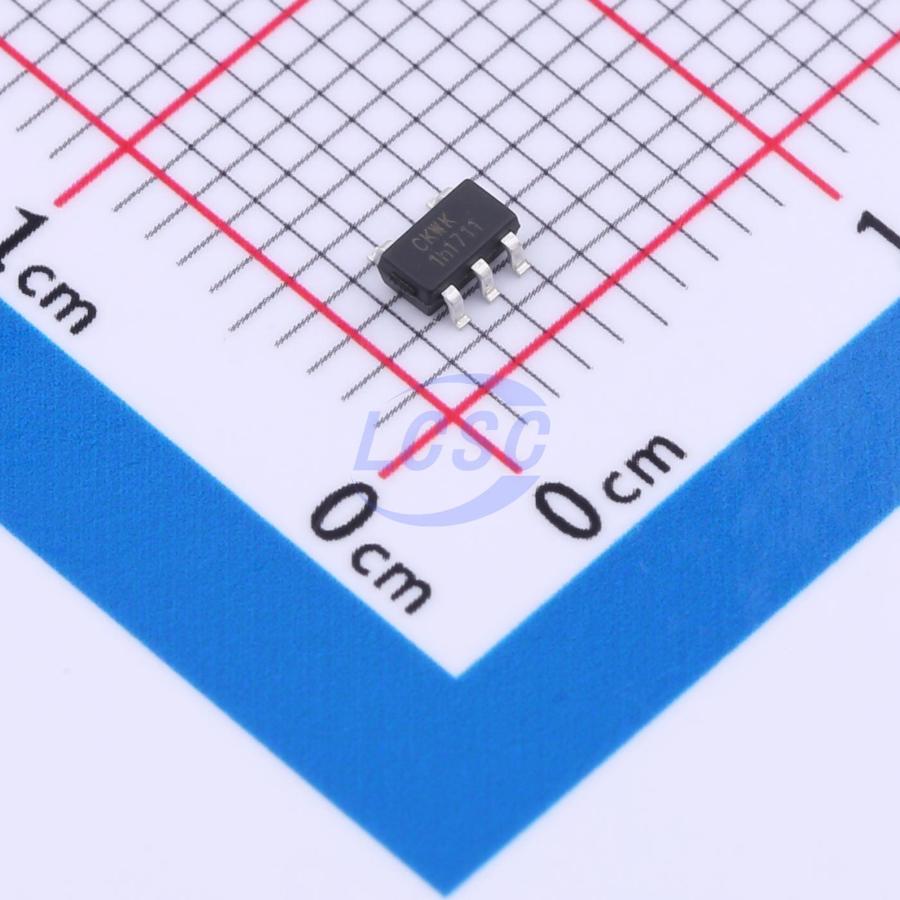

BL9165-330BARN

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

500mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator

Manufacturer: BL
Manufacturer part #: BL9165-330BARN
Store part #: C2932546
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,605 in stock

#C2932546

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹10.82	₹54.10
50+	₹8.53	₹426.50
150+	₹7.38	₹1,107.00
500+	₹6.52	₹3,260.00
3,000+	₹5.83	₹17,490.00
6,000+	₹5.49	₹32,940.00

Quantity (min 5, multiples of 5)

5 × ₹10.82

₹54.10

excl. GST

₹63.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9165-330BARN

₹54.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 45uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 500mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The BL9165 is designed for portable applications with demanding performance and space requirements. The BL9165 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9165 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9165 consumes only 0.1μA current in shutdown mode and has fast turn-on time (Typical 100μs). The other features include ultra- low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.

Applications

Cellular and Smart Phones
Cordless Telephones
Camera and Machine Vision Modules
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
PCMCIA Cards Portable Information Appliances

Key features

Ultra-low Noise
Ultra-Fast Transient Response
High PSRR: -87dB @ 217Hz -83dB @ 1KHz -54dB @ 1MHz
0.1μA Standby Current When Shutdown
Low Dropout: 240mV@500mA (VOUT = 2.8V)
Wide Operating Voltage Ranges: 1.8V to 5.5V
Current Limiting and Short Circuit Current Protection
Thermal Shutdown Protection
Only 1μF Output Capacitor Required for Stability
Fast output discharge
Available in SOT23-5, SC70-5 and DFN1X1-4L Packages
