ROHMDatasheet (PDF)

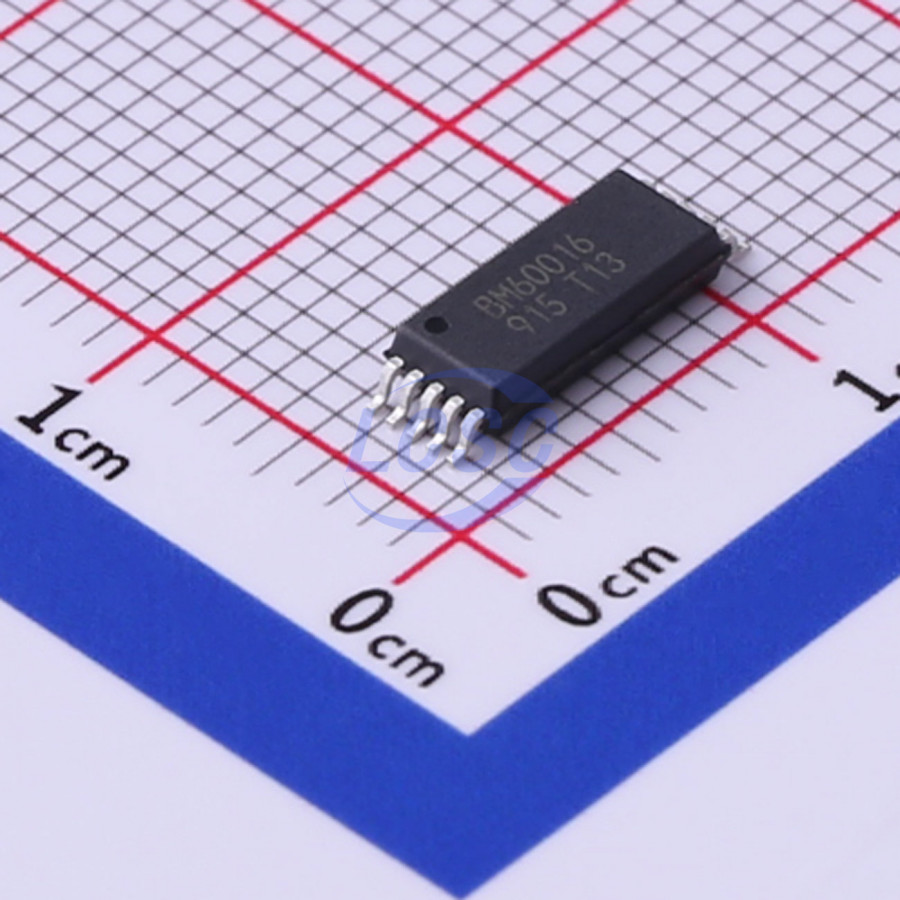

BM60016FV-CE2
4.5V~5.5V 3.9A 4.5A SSOP-10-3.5mm Gate Drivers RoHS
SSOP-10-3.5mmROHS CompliantActive
Gate Driver Providing Galvanic Isolation
- Manufacturer
- ROHM
- Manufacturer part #
- BM60016FV-CE2
- Store part #
- C308607
- Package / case
- SSOP-10-3.5mm
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,321 in stock
#C308607
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.30 | ₹209.30 |
| 10+ | ₹171.50 | ₹1,715.00 |
| 30+ | ₹150.54 | ₹4,516.20 |
| 100+ | ₹127.01 | ₹12,701.00 |
| 500+ | ₹116.64 | ₹58,320.00 |
| 1,500+ | ₹111.89 | ₹1,67,835.00 |
1 × ₹209.30
₹209.30
excl. GST
₹246.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BM60016FV-CE2
₹209.30 for 1 + GST
Specifications
- Input Logic Level - Low
- 0V~800mV
- Low Level Delay Time
- 55ns
- High Level Delay Time
- 55ns
- Quiescent Current
- 140uA
- Input Logic Level - High
- 2V
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 3.9A
- Rise Time
- 50ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The BM60016FV-C is a gate driver with an isolation voltage of 2500Vrms, I/O delay time of 75ns, and minimum input pulse width of 60ns. It incorporates the Under-voltage Lockout (UVLO) function and Miller clamp function.
Applications
- IGBT Gate Driver
- MOSFET Gate Driver
Key features
- Providing Galvanic Isolation
- Active Miller Clamping
- Under-voltage Lockout function
- UL1577(pending)
- AEC-Q100 Qualified
