ROHMDatasheet (PDF)

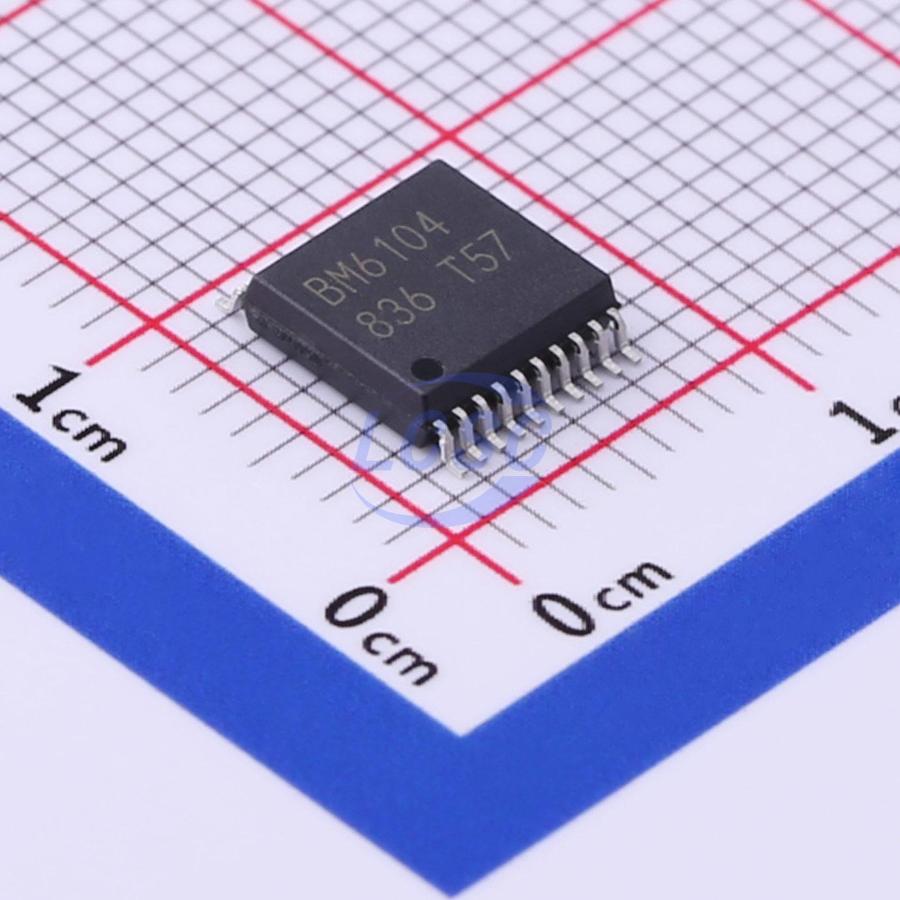

BM6104FV-CE2
4.5V~5.5V 4.5A 4.5A SSOP-20-6.1mm Gate Drivers RoHS
SSOP-20-6.1mmROHS CompliantActive
BM6104FV-C: 2500Vrms Electrically Isolated Gate Driver (Supports IGBT/MOSFET Applications)
- Manufacturer
- ROHM
- Manufacturer part #
- BM6104FV-CE2
- Store part #
- C507464
- Package / case
- SSOP-20-6.1mm
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,472 in stock
#C507464
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.72 | ₹360.72 |
| 10+ | ₹318.13 | ₹3,181.30 |
| 30+ | ₹291.62 | ₹8,748.60 |
| 100+ | ₹264.24 | ₹26,424.00 |
| 500+ | ₹252.07 | ₹1,26,035.00 |
| 1,000+ | ₹246.63 | ₹2,46,630.00 |
1 × ₹360.72
₹360.72
excl. GST
₹425.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BM6104FV-CE2
₹360.72 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 510uA
- Input Logic Level - High
- 2V
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4.5A
- Rise Time
- 50ns
- Fall Time
- 50ns
- Features
- Overcurrent Protection
- Current - Output High(IOH)
- 4.5A
- Load Type
- IGBT;MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.362 g
Overview
The BM6104FV-C is a gate driver with isolation voltage 2500Vrms, I/O delay time of 150ns, and minimum input pulse width of 90ns, and incorporates the fault signal output functions, undervoltage lockout (UVLO) function, and short current protection (SCP, DESAT) function.
Applications
- IGBT Gate Driver
- MOSFET Gate Driver
Key features
- Providing Galvanic Isolation
- Active Miller Clamping
- Fault Signal Output Function (Adjustable Output Holding Time)
- Undervoltage Lockout Function
- Short Current Protection Function (Adjustable Reset Time)
- Soft Turn-Off Function For Short Current Protection (Adjustable Turn-Off Time)
- Supporting Negative VEE2
- Output State Feedback Function
- UL1577 Recognized: File No. E356010
- AEC-Q100 Qualified
