Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,712 in stock
#C6516030
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.68 | ₹86.68 |
| 10+ | ₹68.88 | ₹688.80 |
| 30+ | ₹59.97 | ₹1,799.10 |
| 100+ | ₹51.28 | ₹5,128.00 |
| 500+ | ₹46.07 | ₹23,035.00 |
| 1,000+ | ₹43.24 | ₹43,240.00 |
1 × ₹86.68
₹86.68
excl. GST
₹102.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

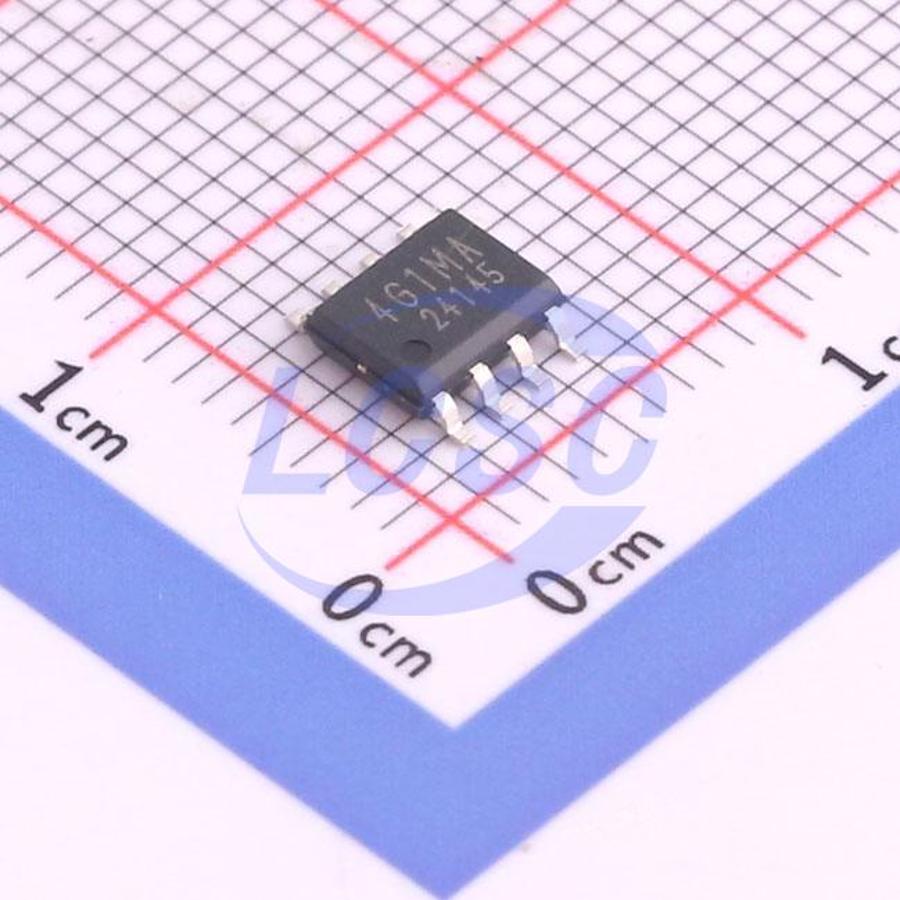

BR24G1MFJ-5AE2
₹86.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3.5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
BR24G1Mxxx - 5A series is a 1 Mbit serial EEPROM with I²C bus interface.
Applications
- General electronic equipment (e.g., AV equipment, office automation equipment, telecommunication equipment, home electronic appliances, entertainment equipment, etc.).
Key features
- All controls accessible via two ports: SCL and SDA
- Operating voltage range 1.7 V to 5.5 V, supports 1 MHz operation
- Page write mode: 256 bytes
- Bit organization: 128 K x 8 bits
- Low current consumption
- Write protection against accidental writes
- WP (Write Protect) function
- Accidental write prevention at low voltage
- Built-in noise filter on SCL/SDA pins
- Initial delivery state: FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24M01-DFMN6TP#C222230ST · SO-8 | ST | SO-8 | 2,046 | ₹132.99 · 2,046 in stock | View |
 | M24M01-RMN6TP#C79990ST · SOIC-8 | ST | SOIC-8 | 37,920 | ₹111.46 · 37,920 in stock | View |
 | M24M01E-FMN6TP#C19654255ST · SO-8-150mil | ST | SO-8-150mil | 3,301 | ₹127.78 · 3,301 in stock | View |
 | 24FC1025T-I/SN#C219471MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 470 | ₹348.53 · 470 in stock | View |
 | 24FC1025-I/SN#C220753MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 95 | ₹392.32 · 95 in stock | View |
