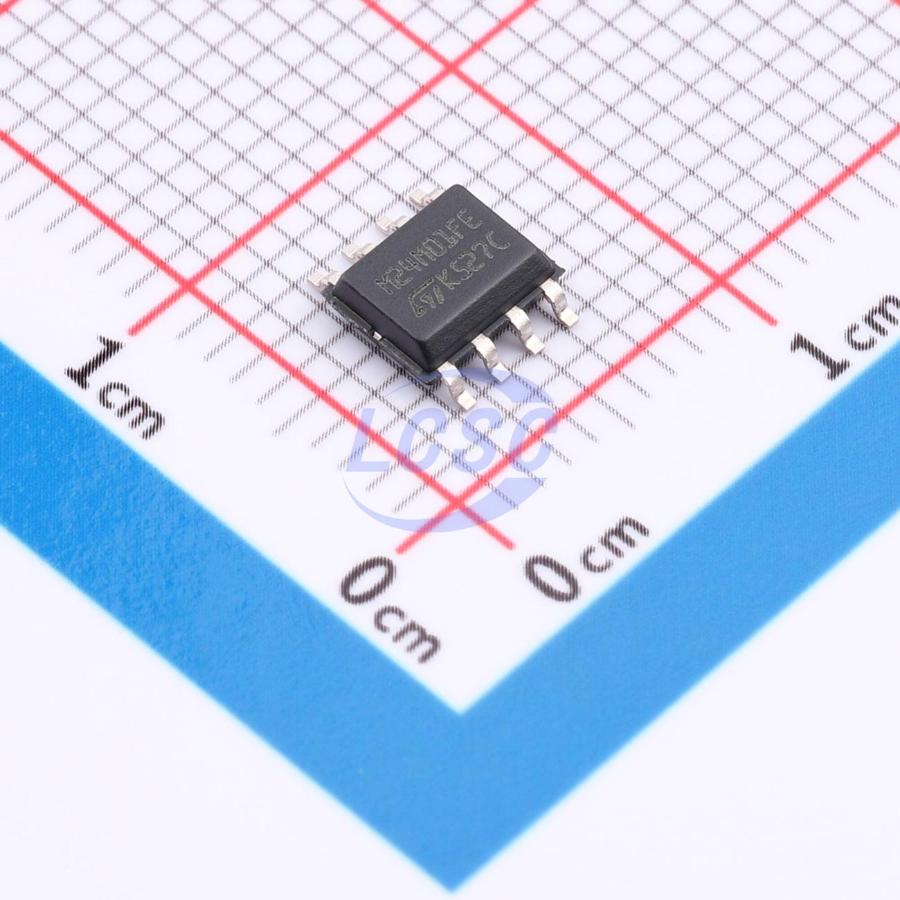

M24M01E-FMN6TP

The M24M01E-F is a 1-Mbit I²C-compatible EEPROM (electrically erasable programmable memory) organized as 128 Kx8 bits. It can operate with a supply voltage from 1.6 V to 5.5 V with a clock frequency up to 1 MHz, over an ambient temperature range of -40 ℃ to +85 ℃. The device offers three 8-bit registers, namely: the device type identifier (DTI) register, the configurable device address (CDA), and the software write protection (SWP) register. The device offers an additional 256-byte page, called the identification page. This page can be used to store sensitive application parameters, which can later be permanently locked in read-only mode. The M24M01E-F is available in the standard 8-pin TSSOP8, SO8N, UFDFPN8, and in the 5-ball wafer level chip scale packaging (WLCSP) with the WC(overline) pin. On demand, the EEPROM can be delivered with a preprogrammed and locked device address.

Key features

• I²C interface: Compatible with the following I²C bus modes: 1 MHz (Fast-mode Plus), 400 kHz (Fast-mode), 100 kHz (Standard-mode)
• Memory: 1-Mbit (128-Kbyte) of EEPROM, Page size: 256-byte, Additional 256-byte identification page
• Supply voltage: Wide voltage range: 1.6 V to 5.5 V
• Temperature: Operating temperature range: -40 °C to +85 °C
• Fast write cycle time: Byte and page write within 4 ms (typically 3 ms)
• Performance: Enhanced ESD/latch-up protection, More than 4 million write cycles, More than 200-year data retention, Fast wake-up time (less than 5 µs)
• Ultra-low power current consumption: 350 nA (typical) in standby mode, 100 µA (typical) for read current, 400 µA (typical) for write current
• Advanced features: Configurable device address register, Device type identifier register (in read-only), Preprogrammed device address, Software write protection register, Hardware write protection of the whole memory array, Random and sequential read modes
• Packages: SO8N, TSSOP8, UFDFPN8, and WLCSP5 (ECOPACK2 compliant)
