InfineonDatasheet (PDF)

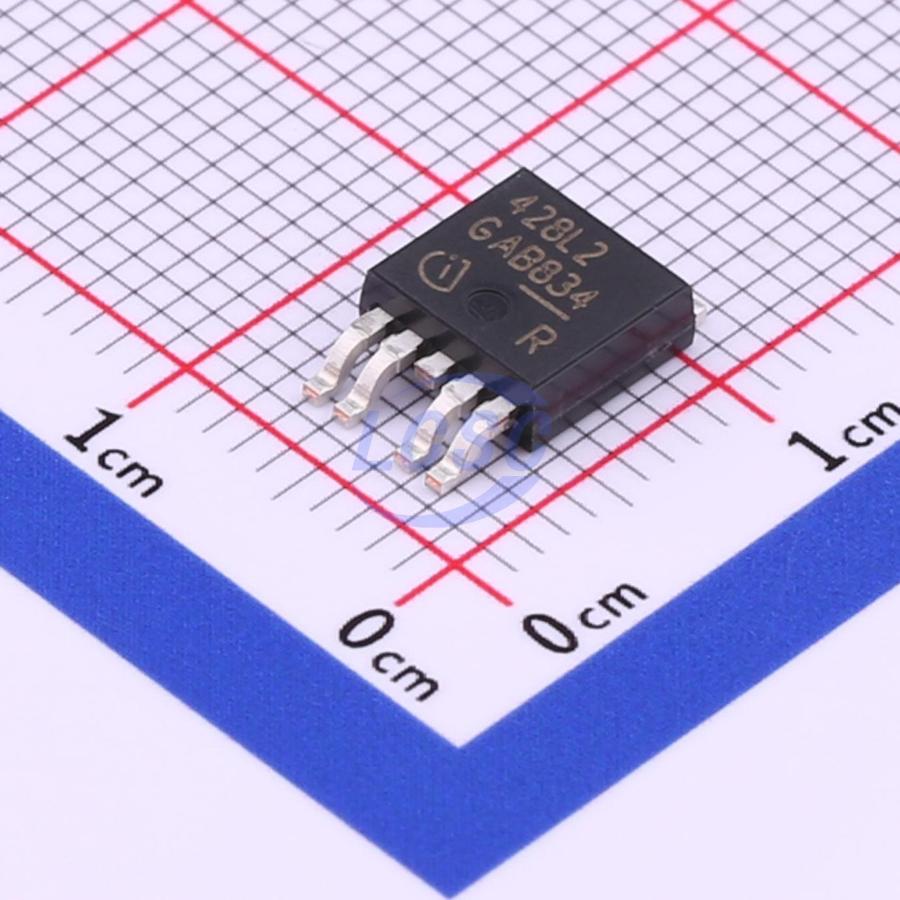

BTS428L2
1 7A Active High High Side Switch TO-252-4 Power Distribution Switches, Load Drivers RoHS
TO-252-4ROHS3 CompliantActive
Smart High-Side Power Switch One Channel: 60mΩ Status Feedback
- Manufacturer
- Infineon
- Manufacturer part #
- BTS428L2
- Store part #
- C534779
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,496 in stock
#C534779
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹420.48 | ₹420.48 |
| 10+ | ₹357.46 | ₹3,574.60 |
| 30+ | ₹320.09 | ₹9,602.70 |
| 100+ | ₹282.28 | ₹28,228.00 |
| 500+ | ₹264.89 | ₹1,32,445.00 |
| 1,000+ | ₹257.07 | ₹2,57,070.00 |
1 × ₹420.48
₹420.48
excl. GST
₹496.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS428L2
₹420.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 7A
- Control Input Logic
- Active High
- RDS(on)
- 60mΩ
- Operating Voltage
- 4.75V~41V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOs technology. Providing embedded protective functions
Applications
- μC compatible high - side power switch with diagnostic feedback for 5V, 12V and 24V grounded loads
- All types of resistive, inductive and capacitve loads
- Most suitable for loads with high inrush currents, so as lamps
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- AEC qualified Green product (RoHS compliant)
- Very low standby current
- CMOS compatible input
- Improved electromagnetic compatibility (EMC)
- Fast demagnetization of inductive loads
- Stable behaviour at undervoltage
- Wide operating voltage range
- Logic ground independent from load ground
- Short circuit protection
- Overload protection
- Current limitation
- Thermal shutdown
- Overvoltage protection (including load dump) with external resistor
- Reverse battery protection with external resistor
- Loss of ground and loss of Vbb protection
- Electrostatic discharge protection (ESD)
- Diagnostic feedback with open drain output
- Open load detection in ON - state
- Feedback of thermal shutdown in ON - state
