InfineonDatasheet (PDF)

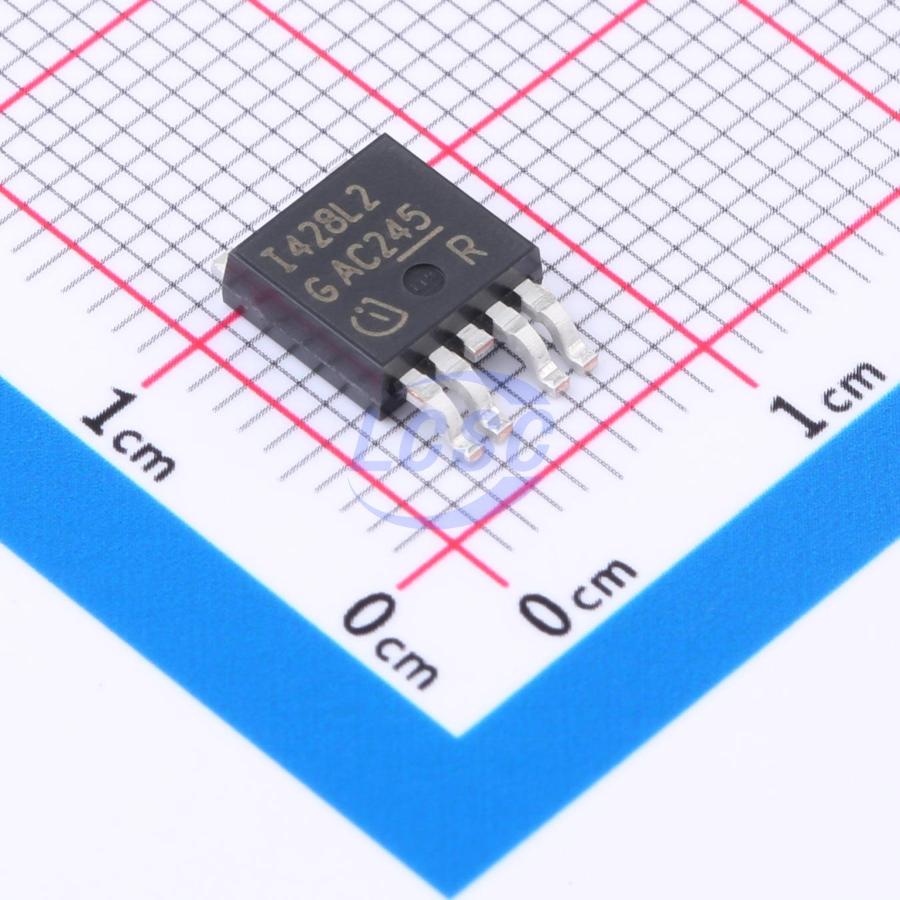

ITS428L2
1 7A Active High High Side Switch TO-252-4 Power Distribution Switches, Load Drivers RoHS
TO-252-4ROHS3 CompliantActive
Smart High-Side Power Switch for Industrial Applications
- Manufacturer
- Infineon
- Manufacturer part #
- ITS428L2
- Store part #
- C538480
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C538480
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹398.71 | ₹398.71 |
| 10+ | ₹338.53 | ₹3,385.30 |
| 30+ | ₹302.89 | ₹9,086.70 |
| 100+ | ₹266.61 | ₹26,661.00 |
| 500+ | ₹250.09 | ₹1,25,045.00 |
| 1,000+ | ₹242.49 | ₹2,42,490.00 |
1 × ₹398.71
₹398.71
excl. GST
₹470.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ITS428L2
₹398.71 for 1 + GST
Specifications
- Operating Temperature
- -30℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 7A
- Control Input Logic
- Active High
- RDS(on)
- 60mΩ
- Operating Voltage
- 4.75V~41V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
Overview
- Green Product (RoHS compliant) - N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOs technology. Providing embedded protective functions
Applications
- μC-compatible high-side power switch with diagnostic feedback for 5V, 12V, and 24V grounded loads in industrial applications
- All types of resistive, inductive, and capacitive loads
- Optimized for loads with high inrush current, such as lamps
- Replacement for electromechanical relays, fuses, and discrete circuits
Key features
- Ultra-low standby current
- CMOS-compatible inputs
- Improved EMC
- Fast demagnetization of inductive loads
- Stable behavior during undervoltage
- Wide operating voltage range
- Isolated logic ground and load ground
- Short-circuit protection
- Overload protection
- Current limiting
- Thermal shutdown
- Overvoltage protection with external resistor (including load dump)
- Reverse battery protection with external resistor
- Loss of ground and loss of Vbb protection
- ESD protection
- Diagnostic feedback with open-drain output
- Open-load detection in ON state
- Thermal shutdown feedback in ON state
