InfineonDatasheet (PDF)

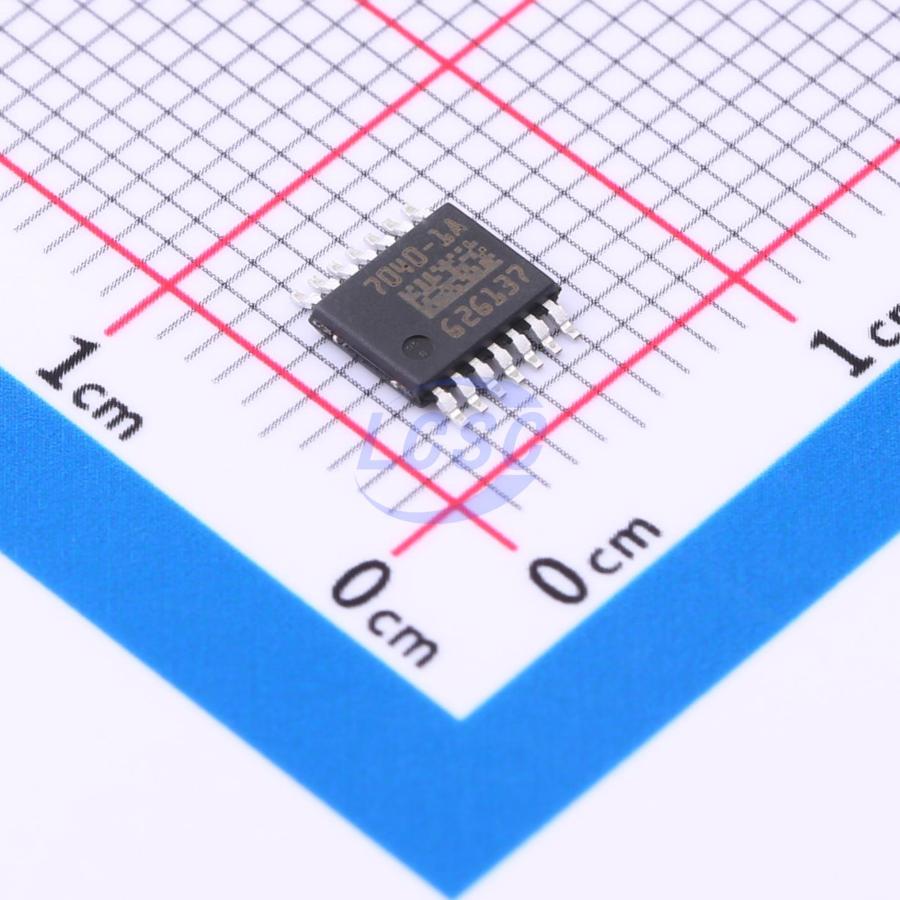

BTS7040-1EPA
1 4.5A Active High High Side Switch TSDSO-14 Power Distribution Switches, Load Drivers
TSDSO-14RoHSActive
12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS7040-1EPA
- Store part #
- C534837
- Package / case
- TSDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,245 in stock
#C534837
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.88 | ₹154.88 |
| 10+ | ₹124.65 | ₹1,246.50 |
| 30+ | ₹109.43 | ₹3,282.90 |
| 100+ | ₹94.41 | ₹9,441.00 |
| 500+ | ₹85.28 | ₹42,640.00 |
| 1,000+ | ₹80.70 | ₹80,700.00 |
1 × ₹154.88
₹154.88
excl. GST
₹182.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS7040-1EPA
₹154.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Over Voltage Protection;Undervoltage Protection(UVP);Overcurrent Protection(OCP)
- number of channels
- 1
- Maximum Continuous Current
- 4.5A
- Control Input Logic
- Active High
- RDS(on)
- 36mΩ
- Operating Voltage
- 4.1V~28V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The BTS7040-1EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Driving capability suitable for 4.5 A loads and high inrush current loads such as P27W+R5W lamps or equivalent electronic loads (e.g. LED modules)
Key features
- High-Side Switch with Diagnosis and Embedded Protection Part of PROFET+2 12V Family ReverseON for low power dissipation in Reverse Polarity Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control Undervoltage shutdown Overvoltage protection with external components
- Proportional load current sense Open Load in ON and OFF state Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS7040-1EPZ#C534838Infineon · TSDSO-14 | Infineon | TSDSO-14 | 3 | ₹142.24 · 3 in stock | View |
 | BTS7008-1EPP#C534828Infineon · TSDSO-14 | Infineon | TSDSO-14 | 1,209 | ₹254.29 · 1,209 in stock | View |
 | BTS7008-1EPZ#C534829Infineon · TSDSO-14 | Infineon | TSDSO-14 | 5 | ₹227.83 · 5 in stock | View |
 | BTS7004-1EPP#C534825Infineon · TSDSO-14 | Infineon | TSDSO-14 | 21,000 | ₹237.57 · 21,000 in stock | View |
 | BTG7003A1EPWXUMA1#C22394340Infineon · TSDSO-14 | Infineon | TSDSO-14 | On request | ₹451.41 · 0 in stock | View |
