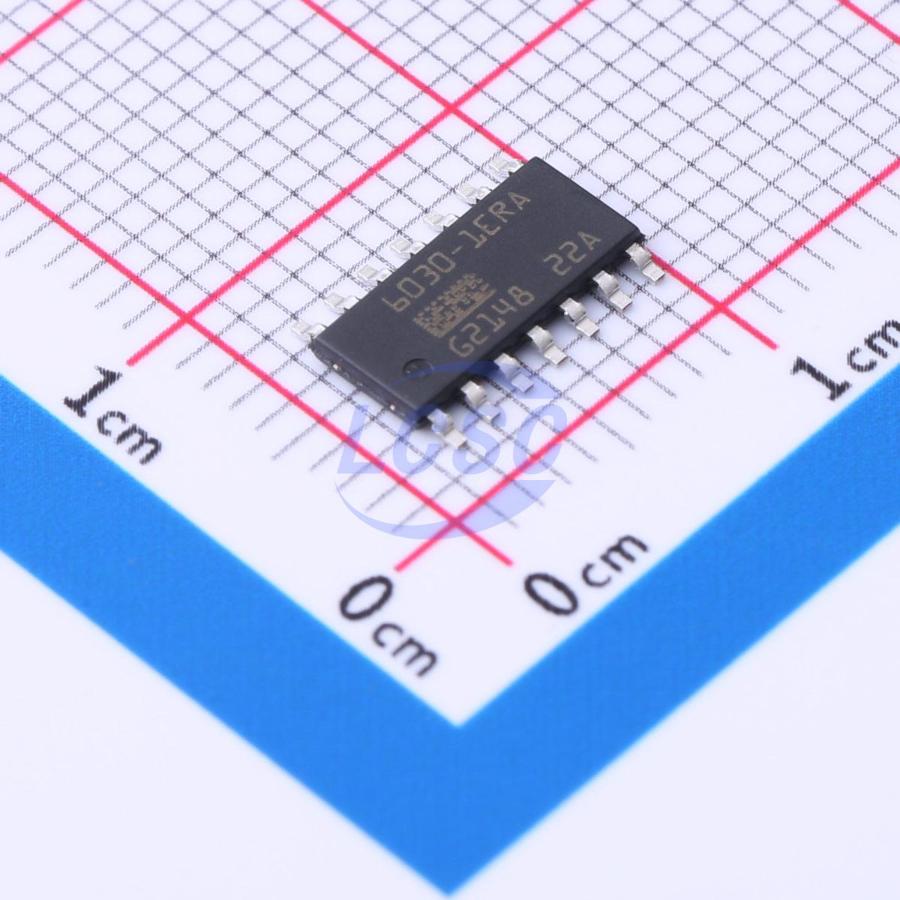

BTT6030-1ERA
1 6A Active High High Side Switch TDSO-14 Power Distribution Switches, Load Drivers RoHS
TDSO-14ROHS3 CompliantActive
Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTT6030-1ERA
- Store part #
- C534863
- Package / case
- TDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,027 in stock
#C534863
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹361.27 | ₹361.27 |
| 10+ | ₹305.59 | ₹3,055.90 |
| 30+ | ₹270.79 | ₹8,123.70 |
| 100+ | ₹235.34 | ₹23,534.00 |
| 500+ | ₹219.25 | ₹1,09,625.00 |
| 1,000+ | ₹212.29 | ₹2,12,290.00 |
1 × ₹361.27
₹361.27
excl. GST
₹426.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTT6030-1ERA
₹361.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- RDS(on)
- 31mΩ
- Operating Voltage
- 5V~36V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
The BTT6030-1ERA is a 31 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 3 x P21 W 24 V or 1 x 70 W 24 V, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
- Suitable for 12 V and 24 V truck and transportation system
Key features
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant) and AEC qualified
