ROHMDatasheet (PDF)

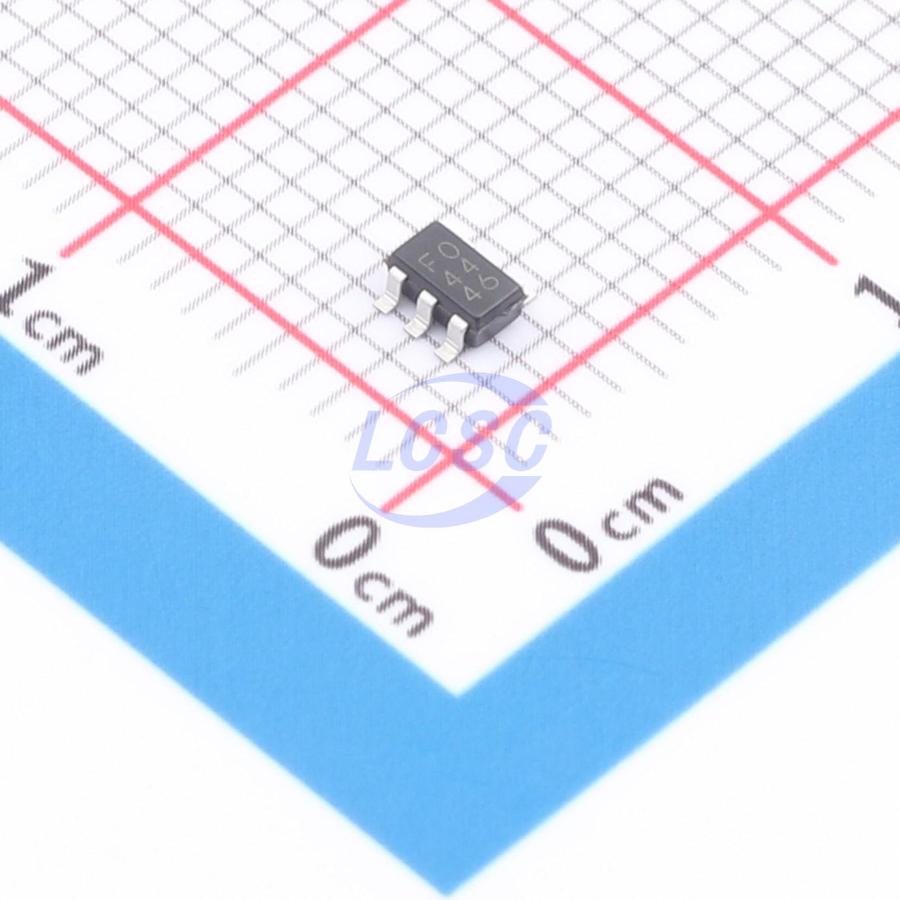

BU10TD3WG-TR
1V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU10TD3WG-TR
- Store part #
- C5562415
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5562415
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.43 | ₹49.43 |
| 10+ | ₹48.36 | ₹483.60 |
| 30+ | ₹47.50 | ₹1,425.00 |
| 100+ | ₹46.85 | ₹4,685.00 |
1 × ₹49.43
₹49.43
excl. GST
₹58.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU10TD3WG-TR
₹49.43 for 1 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The BUxxTD3WG series is a high-performance, full-CMOS voltage regulator with 200mA output capability in an SSOP5 package. Despite a circuit current consumption of only 35μA, it delivers excellent noise characteristics and load transient response. Ideal for powering a wide range of applications including logic ICs, RF circuits, and camera modules.
Applications
- Battery-powered portable devices
Key features
- High-precision detection
- Low current consumption
- Compatible with small ceramic capacitors
- Built-in output discharge circuit
- High ripple rejection
- Output voltage switching control
- Built-in overcurrent protection and thermal shutdown circuits
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BU10JA2VG-CGTR#C3751911ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹46.87 · 0 in stock | View | |
