ROHMDatasheet (PDF)

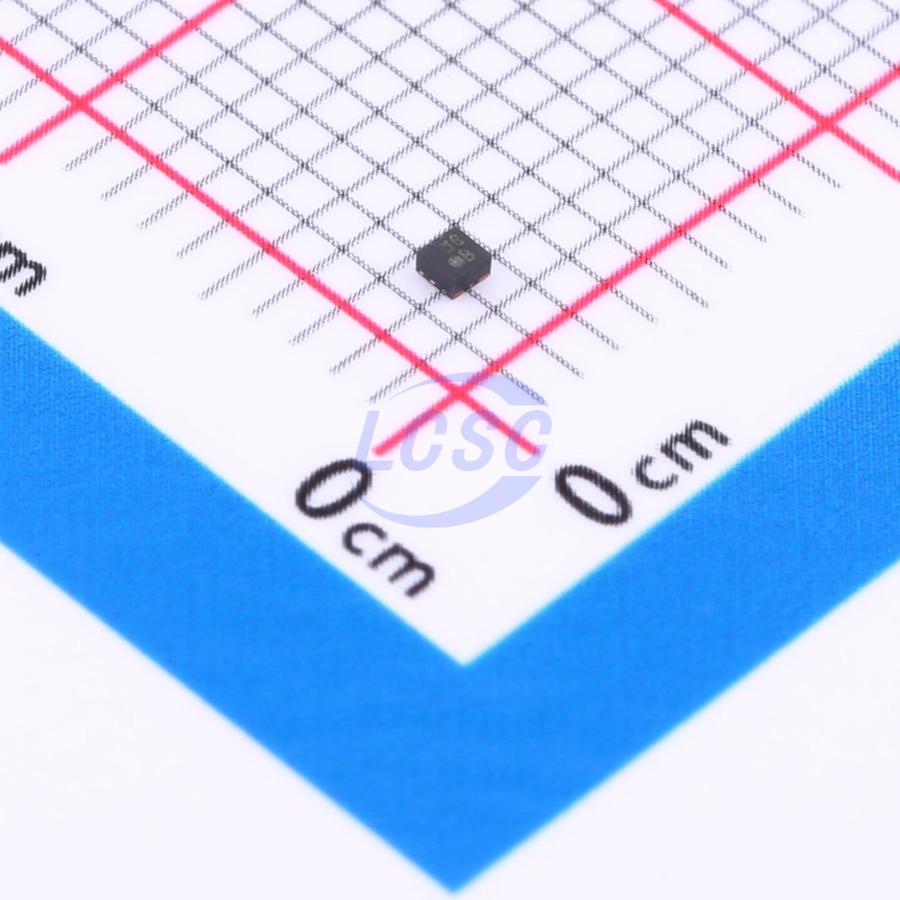

BU12TD2WNVX-TL
1.2V Positive Fixed UDFN-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-4-EPROHS3 CompliantActive
FULL CMOS LDO Regulator
- Manufacturer
- ROHM
- Manufacturer part #
- BU12TD2WNVX-TL
- Store part #
- C3751692
- Package / case
- UDFN-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,180 in stock
#C3751692
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.69 | ₹93.45 |
| 50+ | ₹18.39 | ₹919.50 |
| 150+ | ₹18.19 | ₹2,728.50 |
| 500+ | ₹17.99 | ₹8,995.00 |
5 × ₹18.69
₹93.45
excl. GST
₹110.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BU12TD2WNVX-TL
₹93.45 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
BUxxTD2WNVX series is high- performance FULL CMOS regulator with 200- mA output, which is mounted on versatile package SSON004X1010 (1.00mm×1.00mm × 0.60mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 35μA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery- powered portable equipment
Key features
- High accuracy detection
- Low current consumption
- Compatible with small ceramic capacitor (Cin = Co = 0.47uF)
- With built- in output discharge circuit
- High ripple rejection
- ON/OFF control of output voltage
- With built- in over current protection circuit and thermal shutdown circuit
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSTPS7A2012PDQNR#C49208537MSKSEMI · DFN-4L(1x1) | MSKSEMI | DFN-4L(1x1) | 3,225 | ₹27.23 · 3,225 in stock | View |
