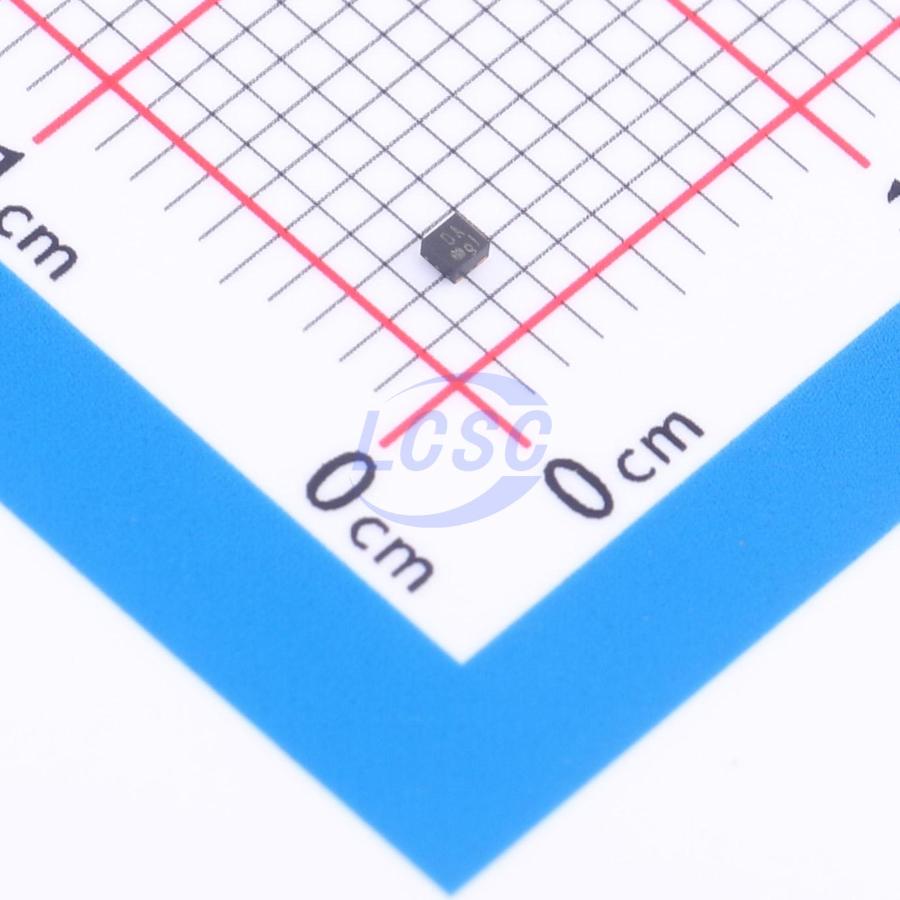

BU21UA3WNVX-TL
2.1V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4-EP(1x1)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU21UA3WNVX-TL
- Store part #
- C6135964
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C6135964
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.53 | ₹87.65 |
| 50+ | ₹17.08 | ₹854.00 |
| 150+ | ₹16.79 | ₹2,518.50 |
| 500+ | ₹16.48 | ₹8,240.00 |
5 × ₹17.53
₹87.65
excl. GST
₹103.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BU21UA3WNVX-TL
₹87.65 for 5 + GST
Specifications
- Output Voltage
- 2.1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
BUxxUA3WNVX series is high-performance FULL CMOS regulator with 300-mA output, which is mounted on versatile package SSON004X1010 (1.00mm × 1.00mm × 0.60mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 50μA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery-powered portable equipment
Key features
- High accuracy detection low current consumption
- Compatible with small ceramic capacitor (Cin = Co = 1.0uF)
- With built-in output discharge circuit
- High ripple rejection
- ON/OFF control of output voltage
- With built-in over current protection circuit and thermal shutdown circuit
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD57E21WB6#C920547Mingda Microelectronics · XDFN-4-EP(1x1) | Mingda Microelectronics | XDFN-4-EP(1x1) | 9,605 | ₹10.31 · 9,605 in stock | View |
| NCP114AMX210TCG#C603488onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | On request | ₹11.18 · 0 in stock | View | |
| RP114K211B-TR#C3745708Nisshinbo Micro Devices Inc. · DFN1010-4 | Nisshinbo Micro Devices Inc. | DFN1010-4 | On request | ₹63.68 · 0 in stock | View | |
| RP114K211D-TR#C7294502Nisshinbo Micro Devices Inc. · DFN1010-4 | Nisshinbo Micro Devices Inc. | DFN1010-4 | On request | ₹131.32 · 0 in stock | View | |
| SGM2036-2.1YUDH4G/TR#C700374SGMICRO · UTDFN-4L(1x1) | SGMICRO | UTDFN-4L(1x1) | On request | ₹27.99 · 0 in stock | View | |
