ROHMDatasheet (PDF)

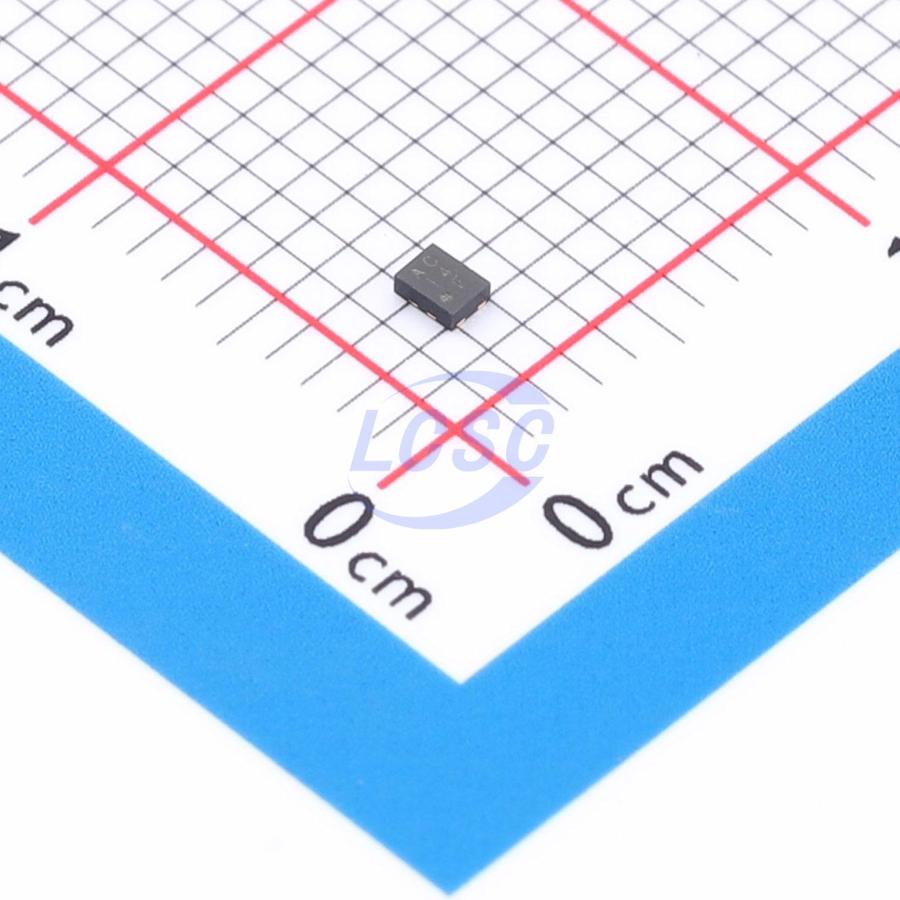

BU25TA2WNVX-TR
2.5V Positive Fixed UDFN-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-4-EPROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU25TA2WNVX-TR
- Store part #
- C6135966
- Package / case
- UDFN-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
132 in stock
#C6135966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.42 | ₹152.42 |
| 10+ | ₹127.06 | ₹1,270.60 |
| 30+ | ₹113.18 | ₹3,395.40 |
| 100+ | ₹97.57 | ₹9,757.00 |
| 500+ | ₹90.64 | ₹45,320.00 |
| 1,000+ | ₹87.38 | ₹87,380.00 |
1 × ₹152.42
₹152.42
excl. GST
₹179.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BU25TA2WNVX-TR
₹152.42 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
The BU☐☐TA2WNVX/HFV series are high-performance full-CMOS regulators with 200mA output capability, housed in ultra-compact packages SSON004X1216 (1.2mm × 1.6mm × 0.6mm) and HVSOF5 (1.6mm × 1.6mm × 0.6mm). Despite a circuit current consumption of only 40μA, they deliver excellent noise characteristics and load transient response. These devices are well-suited for a wide range of applications powering logic ICs, RF modules, camera modules, and more. The ultra-compact packages SSON004X1216 and HVSOF5 feature an integrated heat spreader, contributing to space savings in equipment design.
Applications
- Battery-powered portable devices
Key features
- High-accuracy output voltage: ±1% (±25mV for 1.5V and 1.8V products)
- High ripple rejection: 70dB (typ., 1kHz, VOUT≤1.8V)
- Compatible with small ceramic capacitors (CIN=Co=1.0μF)
- Low current consumption: 40μA
- Output voltage on/off control
- Built-in overcurrent protection and thermal protection circuits
- Built-in output discharge circuit
- Ultra-compact power package SSON004X1216
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BU25JA2MNVX-CTL#C3744269ROHM · UDFN-4-EP | ROHM | UDFN-4-EP | On request | ₹37.68 · 0 in stock | View | |
| BU25TD2WNVX-TL#C3744956ROHM · UDFN-4-EP | ROHM | UDFN-4-EP | On request | ₹34.41 · 0 in stock | View | |
| XC6223B2519R-G#C6754373TOREX · XDFN-4-EP | TOREX | XDFN-4-EP | On request | ₹75.20 · 0 in stock | View | |
| MIC5374-SJG1YMT-TR#C622413MICROCHIP · MLF-4 | MICROCHIP | MLF-4 | On request | ₹93.54 · 0 in stock | View | |
