ROHMDatasheet (PDF)

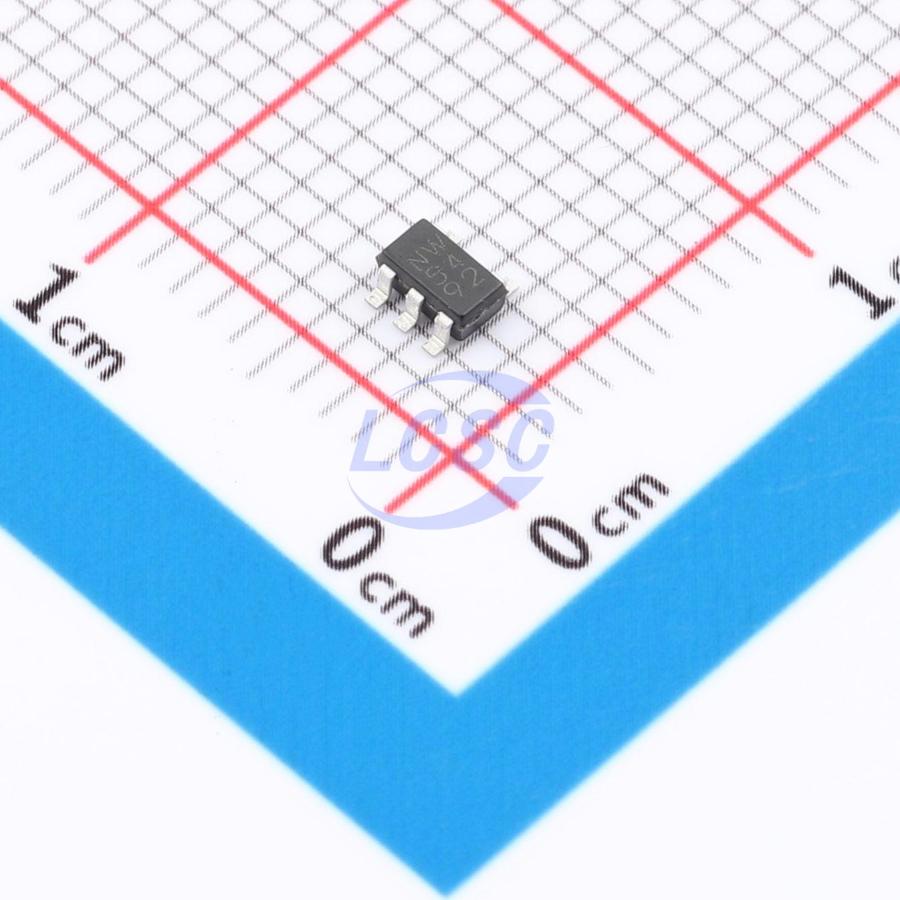

BU28SD2MG-MTR
2.8V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU28SD2MG-MTR
- Store part #
- C3751584
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3751584
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.57 | ₹84.57 |
| 10+ | ₹82.63 | ₹826.30 |
| 30+ | ₹81.35 | ₹2,440.50 |
| 100+ | ₹80.07 | ₹8,007.00 |
1 × ₹84.57
₹84.57
excl. GST
₹99.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU28SD2MG-MTR
₹84.57 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The BUxxSD2-M series are high-performance CMOS LDO regulators with output current capability up to 200mA. These devices feature excellent noise and load transient characteristics while drawing only 33μA of quiescent current. They are ideal for powering a wide range of applications including logic ICs, RF modules, and camera modules.
Applications
- Automotive equipment
- Portable devices
- Camera modules
- Other electronic equipment using microcontrollers or logic circuits
Key features
- High output voltage accuracy: ±2.0% (under all recommended conditions)
- High ripple rejection: 68 dB (typical, 1 kHz)
- Compatible with small ceramic capacitors (Cin=Cout=0.47 μF)
- Low current consumption: 33μA
- Output voltage ON/OFF control
- Built-in overcurrent protection circuit
- Built-in thermal shutdown circuit
- SSOP5 package compatible with SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BU28JA2DG-CTR#C5581292ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹49.16 · 0 in stock | View | |
| BU28JA2VG-CGTR#C6755630ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹49.86 · 0 in stock | View | |
| BU28TD3WG-TR#C6474002ROHM · SSOP-5 | ROHM | SSOP-5 | On request | ₹22.07 · 0 in stock | View | |
