ROHMDatasheet (PDF)

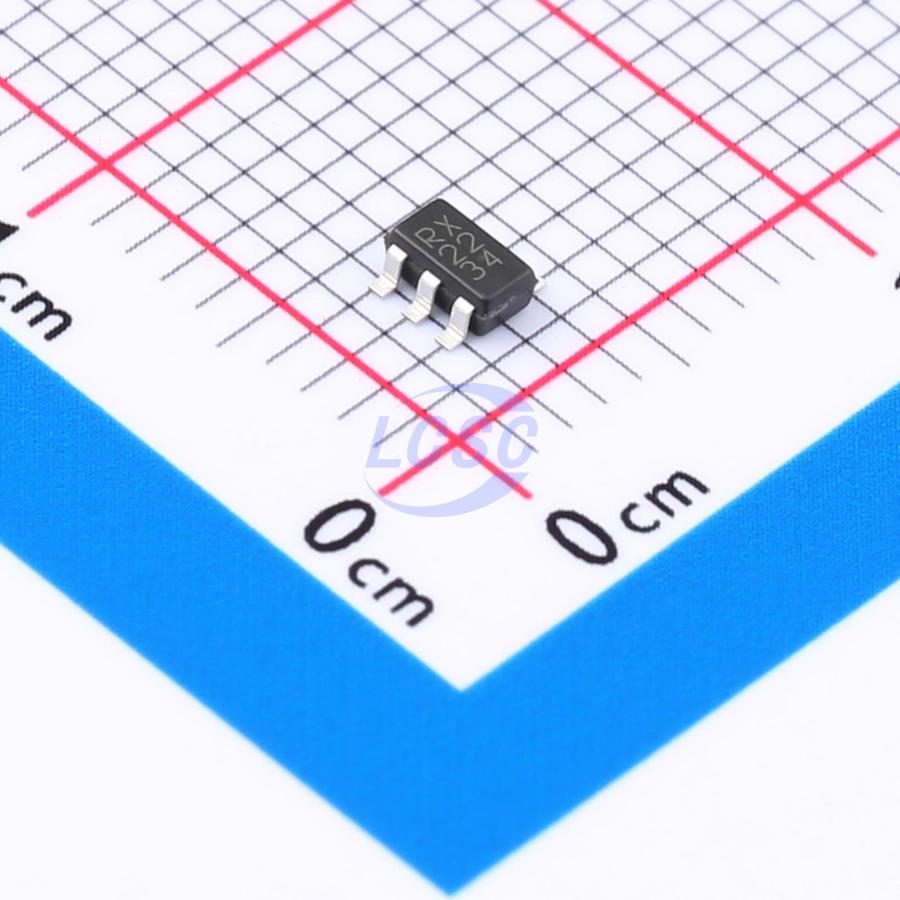

BU33SD5WG-TR
3.3V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
CMOS LDO Regulators for Portable Equipments 1ch 500mA
- Manufacturer
- ROHM
- Manufacturer part #
- BU33SD5WG-TR
- Store part #
- C3750265
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,025 in stock
#C3750265
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.60 | ₹178.00 |
| 50+ | ₹28.13 | ₹1,406.50 |
| 150+ | ₹24.93 | ₹3,739.50 |
| 500+ | ₹20.04 | ₹10,020.00 |
| 3,000+ | ₹18.26 | ₹54,780.00 |
| 6,000+ | ₹17.20 | ₹1,03,200.00 |
5 × ₹35.60
₹178.00
excl. GST
₹210.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU33SD5WG-TR
₹178.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
BUxxSD5 series are high- performance CMOS LDO regulators with output current ability of up to 500mA. These devices have excellent noise and load response characteristics despite of its low circuit current consumption of 33μA. They are most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Portable devices
- Camera modules
- Other electronic devices using microcontrollers or logic circuits
Key features
- High Output Voltage Accuracy: ±2.0% (In all recommended conditions)
- High Ripple Rejection: TYP;68dB(f=1KHz)
- Compatible with small ceramic capacitor (Cin=Cout=0.47μF, min)
- Low Current Consumption: 33μA
- Output Voltage ON/OFF control
- Built-in Over Current Protection Circuit (OCP)
- Built-in Thermal Shutdown Circuit (TSD)
- Package SSOP5 is similar to SOT23-5(JEDEC)
