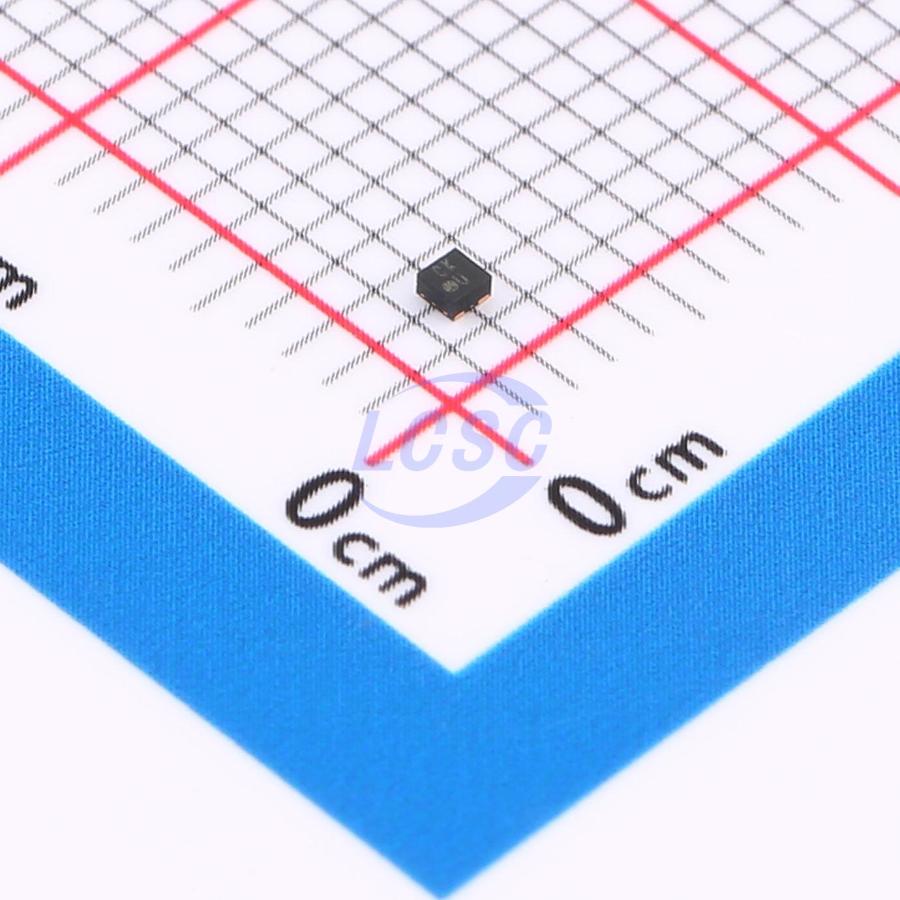

BU33TD2WNVX-TL
3.3V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4-EP(1x1)ROHS3 CompliantActive
CMOS LDO Regulator for Portable Equipments
- Manufacturer
- ROHM
- Manufacturer part #
- BU33TD2WNVX-TL
- Store part #
- C161952
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,950 in stock
#C161952
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.52 | ₹65.20 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 1,000+ | ₹3.84 | ₹3,840.00 |
| 5,000+ | ₹3.41 | ₹17,050.00 |
| 10,000+ | ₹3.20 | ₹32,000.00 |
10 × ₹6.52
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BU33TD2WNVX-TL
₹65.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
BUxxTD2WNVX series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on versatile package SSON004X1010 (1.00mm x 1.00mm x 0.60mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 35uA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Applications
- Battery-powered portable equipment
Key features
- High accuracy detection
- Low current consumption
- Compatible with small ceramic capacitor (Cin=Co=0.47uF)
- With built-in output discharge circuit
- High ripple rejection
- ON/OFF control of output voltage
- With built-in over current protection circuit and thermal shutdown circuit
- Low dropout voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5053V330DF1E#C46682678etasolution · DFN-4-EP(1x1) | etasolution | DFN-4-EP(1x1) | 9,850 | ₹7.37 · 9,850 in stock | View |
 | SK6013AD4-33#C2682741Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 9,975 | ₹9.99 · 9,975 in stock | View |
 | ME6211C33U4AG-N#C428904MICRONE · X2-SON-4-EP(1x1) | MICRONE | X2-SON-4-EP(1x1) | 9,910 | ₹6.04 · 9,910 in stock | View |
 | SK6013SD4-33#C47325475Suntek · DFN-4-EP(1x1) | Suntek | DFN-4-EP(1x1) | 570 | ₹11.08 · 570 in stock | View |
 | TP132LC33D4#C48639049TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 14,340 | ₹4.13 · 14,340 in stock | View |
