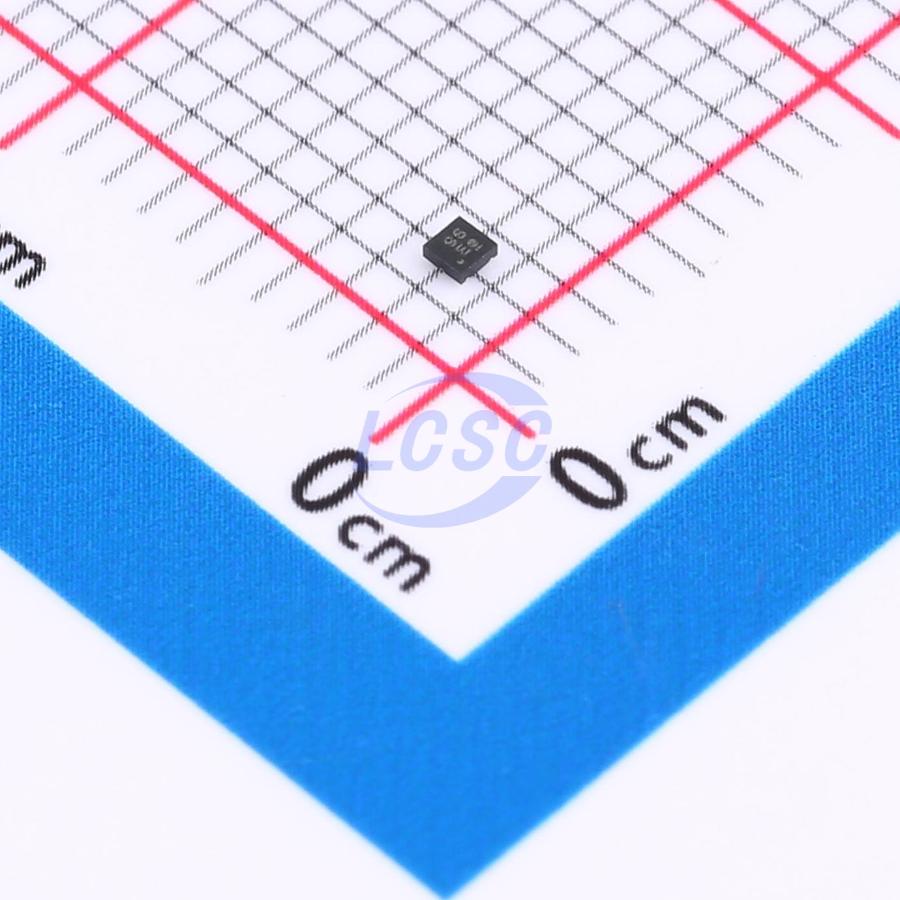

ETA5053V330DF1E
3.3V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4-EP(1x1)ROHS CompliantActive
70dB PSRR, Low Noise, Fast ReSponse 300mA LDO
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5053V330DF1E
- Store part #
- C46682678
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,850 in stock
#C46682678
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.86 | ₹88.60 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.06 | ₹1,818.00 |
| 1,000+ | ₹5.34 | ₹5,340.00 |
| 5,000+ | ₹4.79 | ₹23,950.00 |
| 10,000+ | ₹4.50 | ₹45,000.00 |
10 × ₹8.86
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ETA5053V330DF1E
₹88.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
Overview
ETA5053 is a fixed output, low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultra-low noise, fast start-up, and excellent line and load transient responses. Its PSRR can be as high as 70dB with quiescent current is about 35uA. Therefore, ETA5053 is an ideal power supply for noise-sensitive applications such as RF transmissions, cellphones, CMOS sensors and audios etc. ETA5053 is available in DFN1x1 and SOT23-5.
Applications
- Cellphone
- Security Camera
- Set-Top Box
Key features
- High PSRR, 70dB
- 300mA Output Current
- Stable with a Wide Range of Ceramic Capacitor
- Excellent Load and Line Transient Response
- 0.24V Dropout Voltage for 200mA at Vout=3.3V
- 35uA Iq
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5071V330DF1E#C7471400etasolution · DFN1x1-4 | etasolution | DFN1x1-4 | 9,300 | ₹10.84 · 9,300 in stock | View |
