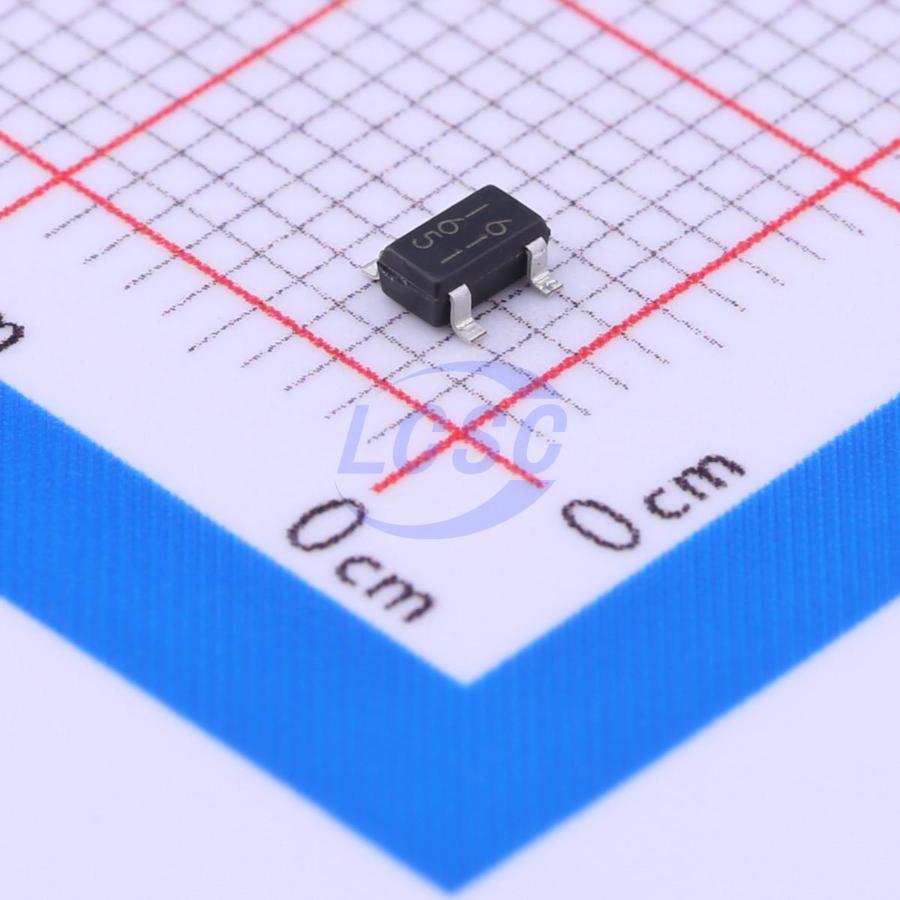

BU4S584G2-TR
Schmitt trigger 3V~16V 50ns@15V,50pF 1uA 1 SSOP-5 Gates and Inverters RoHS
SSOP-5ROHS3 CompliantActive
General Purpose CMos Logic IC Single Schmitt Trigger Inverter Gate
- Manufacturer
- ROHM
- Manufacturer part #
- BU4S584G2-TR
- Store part #
- C131481
- Package / case
- SSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,952 in stock
#C131481
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.53 | ₹103.53 |
| 10+ | ₹88.71 | ₹887.10 |
| 30+ | ₹81.31 | ₹2,439.30 |
| 100+ | ₹73.90 | ₹7,390.00 |
| 500+ | ₹69.39 | ₹34,695.00 |
| 1,000+ | ₹61.25 | ₹61,250.00 |
1 × ₹103.53
₹103.53
excl. GST
₹122.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU4S584G2-TR
₹103.53 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4S
- Voltage - Supply
- 3V~16V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 50ns@15V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 1.5V~4V
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.95V;4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The BU4S584G2 consist of single schmitt trigger inverter. Also, because a buffer with the inverter is added to the gate output, the I/O transmission characteristic is improved, and a change of the propagation delay time by the increase of the load capacitance is minimized.
Key features
- Low Power Consumption
- High Noise Immunity
- Wide Operating Supply Voltage Range
- High Input Impedance
- High Fan Out
- 2 L-TTL inputs or 1 LS-TTL Input can be directly driven
- Output is Buffered
