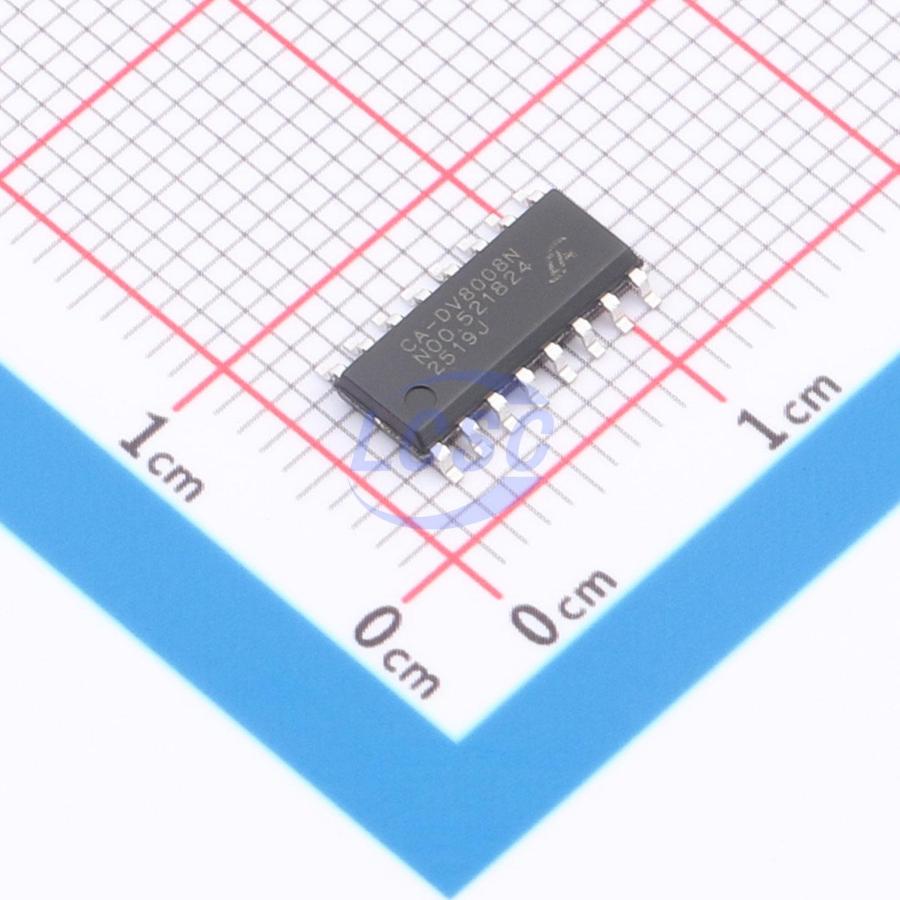

CA-DV8008N
SOIC-16N Motor Drivers, Controllers
- Manufacturer
- Chipanalog
- Manufacturer part #
- CA-DV8008N
- Store part #
- C54557228
- Package / case
- SOIC-16N
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C54557228
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.70 | ₹203.50 |
| 50+ | ₹31.29 | ₹1,564.50 |
| 150+ | ₹27.27 | ₹4,090.50 |
| 500+ | ₹22.24 | ₹11,120.00 |
| 2,500+ | ₹20.00 | ₹50,000.00 |
| 5,000+ | ₹18.65 | ₹93,250.00 |
5 × ₹40.70
₹203.50
excl. GST
₹240.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CA-DV8008N
₹203.50 for 5 + GST
Specifications
- Features
- Input under-voltage protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.45 g
Overview
CA-DV8008 is an I2C-controlled 8-channel low-side driver that enables serial-to-parallel control, significantly reducing the controller's GPIO resource usage and lowering system cost. Each channel supports 500mA sink current capability with output port voltage rating up to 50V. Built-in clamp diodes handle inductive loads, making it suitable for driving stepper motors, DC motors, relays, and solenoids. Supports 400kHz fast I2C bus with 3 address-configurable pins (A2~A0), allowing up to 8 CA-DV8008 devices on the same bus. SCL and SDA pins use CMOS logic levels; the logic-side supply VCC supports a voltage range of 3V~5.5V, allowing direct connection and shared power supply with 3.3V/5V controllers. The device is available in SOIC16-NB and TSSOP16 package options, supporting an operating temperature range of -40°C ~ 125°C.
Applications
- Stepper motor drive
- DC brushed motor drive
- Relay drive
- LED drive
- Line driver
- Logic buffer
Key features
- 8-channel low-side output
- 500mA sink current capability per channel (25°C, single channel on)
- 250mA sink current capability per channel (25°C, all 8 channels on, SOIC16-NB package)
- Output port voltage up to 50V
- Built-in clamp diodes for inductive load protection
- I2C input control, supporting clock rates up to 400kHz
- SCL/SDA pins with CMOS logic levels
- 3 configurable address pins, up to 8 CA-DV8008 devices on the same bus
- VCC supply voltage range: 3V~5.5V
- Ambient operating temperature range: -40°C ~ 125°C
- Available in SOIC16-NB and TSSOP16 package options
