ChipanalogDatasheet (PDF)

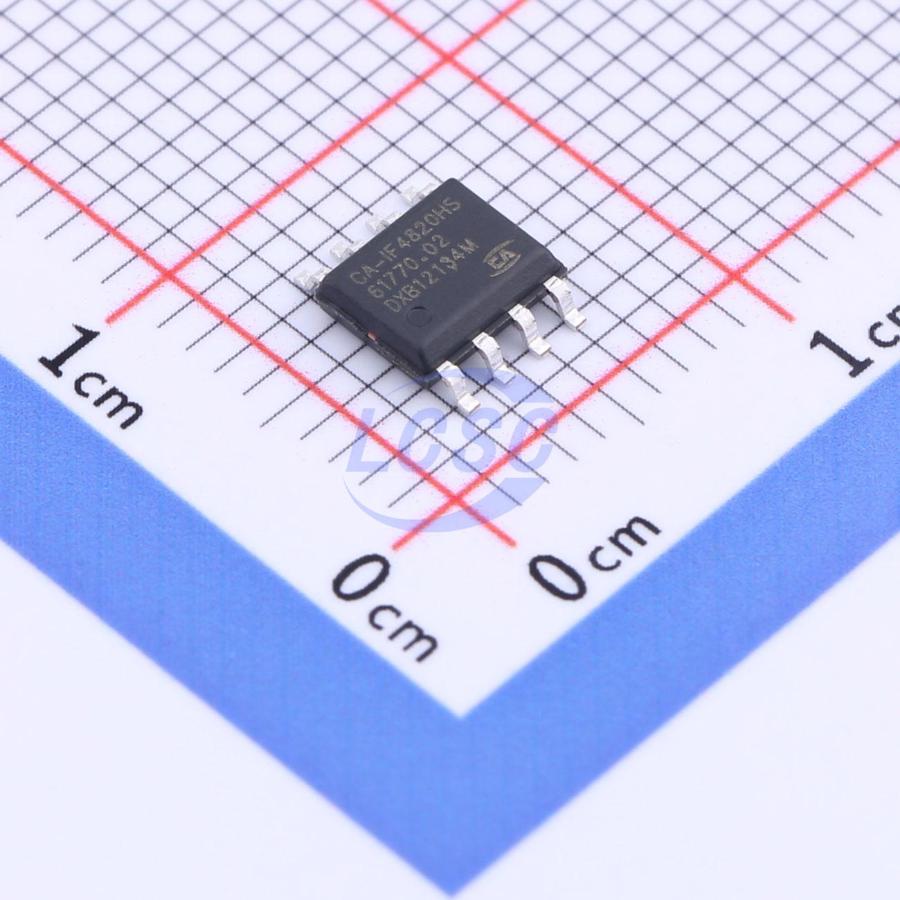

CA-IF4820HS
Transceiver Half RS422, RS485 SOIC-8
SOIC-8ROHS CompliantActive
3.3V to 5V RS485/RS422 Transceiver with ±30kV ESD Protection
- Manufacturer
- Chipanalog
- Manufacturer part #
- CA-IF4820HS
- Store part #
- C2846827
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,525 in stock
#C2846827
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.69 | ₹63.69 |
| 10+ | ₹50.49 | ₹504.90 |
| 30+ | ₹43.89 | ₹1,316.70 |
| 100+ | ₹38.94 | ₹3,894.00 |
| 500+ | ₹34.98 | ₹17,490.00 |
| 1,000+ | ₹33.00 | ₹33,000.00 |
1 × ₹63.69
₹63.69
excl. GST
₹75.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CA-IF4820HS
₹63.69 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 20Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±30kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 5uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.367 g
Overview
CA-IF48xx is a series of noise-immune RS-485/RS-422 full-duplex/half-duplex transceivers designed for use in harsh industrial environments. The bus pins of these devices can withstand high-level IEC Electrical Fast Transient (EFT) and IEC Electrostatic Discharge (ESD), eliminating the need for additional system-level protection components. The devices in this series extend the common-mode voltage range to ±15V and the fault protection range to ±30V, making them well-suited for long-cable applications. The CA-IF48xx series is available in compact SOIC8, MSOP, and DFN packages for space-constrained applications. These devices operate over a temperature range of -40°C to 125°C in a natural convection environment.
Applications
- Motor drivers
- Factory automation and control
- Grid infrastructure
- Building automation
- HVAC systems
- Video surveillance
- Process control
- Wireless infrastructure
Key features
- Meets or exceeds TIA/EIA-485A standard requirements
- Data rate:
- CA-IF4850: 50Mbps
- CA-IF4820: 20Mbps
- CA-IF4805: Low EMI 500Kbps
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CA-IF4850HS#C7422579Chipanalog · SOIC-8 | Chipanalog | SOIC-8 | 3,466 | ₹67.94 · 3,466 in stock | View |
 | CS48520S#C5184817Chipanalog · SOIC-8 | Chipanalog | SOIC-8 | On request | Price on request | Quote |
 | CS48520AS#C7422554Chipanalog · SOIC-8 | Chipanalog | SOIC-8 | 16,595 | ₹38.65 · 16,595 in stock | View |
