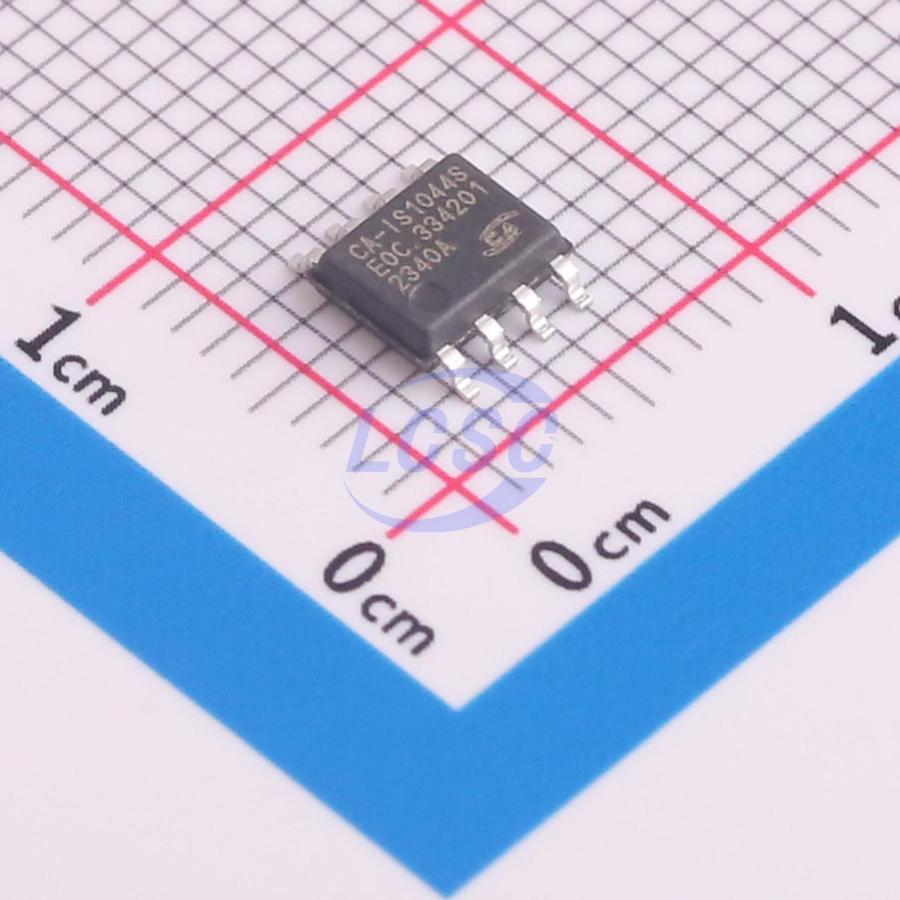

CA-IS1044S

The CA-IS1044S is a galvanically isolated Controller Area Network (CAN) transceiver with outstanding isolation and CAN performance for industrial applications. The device's logic input and output buffers are separated by a silicon dioxide (SiO₂) insulation barrier to provide galvanic isolation. Isolation improves communication by breaking ground loops and reduces noise where large ground potential differences exist between ports. The CA-IS1044S comes in a compact 8-pin SOIC package with galvanic isolation rated up to 3750VRMS (60 seconds). These transceivers support data rates up to 2Mbps and feature integrated protection for reliable communication, including current limiting, thermal shutdown, and extended ±58V fault protection on the CAN bus for devices requiring overvoltage protection. Dominant timeout detection prevents bus lockup caused by controller errors or TXD input faults. These CAN receivers also feature a ±30V input common-mode range (CMR), exceeding the -2V to +7V range specified by ISO 11898. All devices operate over a temperature range of -40°C to +125°C. The CA-IS1044S is available in a standard 8-pin narrow-body SOIC package with an operating temperature range of -40°C to +125°C.

Applications

• Industrial control
• Building automation
• Security & protection systems
• Transportation
• Automotive gateway

Key features

• Compliant with ISO 11898-2 physical layer standard
• Integrated protection for enhanced robustness
• Withstands 3kV RMS isolation voltage for 60 seconds (galvanic isolation)
• Typical common-mode transient immunity of ±100kV/μs
• ±58V fault tolerance on CANH and CANL
• Extended common-mode input range (CMR) of ±30V
• Transmitter dominant timeout prevents lockup at data rates as low as 5.5kbps
• Thermal shutdown
• Data rates up to 2Mbps
• Low loop delay: 140ns typical, 210ns maximum
• I/O voltage range 2.5V to 5.5V, supports 2.5V, 3V, 3.3V, and 5V CAN controller interfaces
• Ideal passive characteristics when unpowered
• Wide operating temperature range: -40°C to 125°C
• Narrow-body SOIC8 (S) package
• Safety regulatory certified
• UL1577 certified
• DIN VDE V 0884-17 basic isolation
