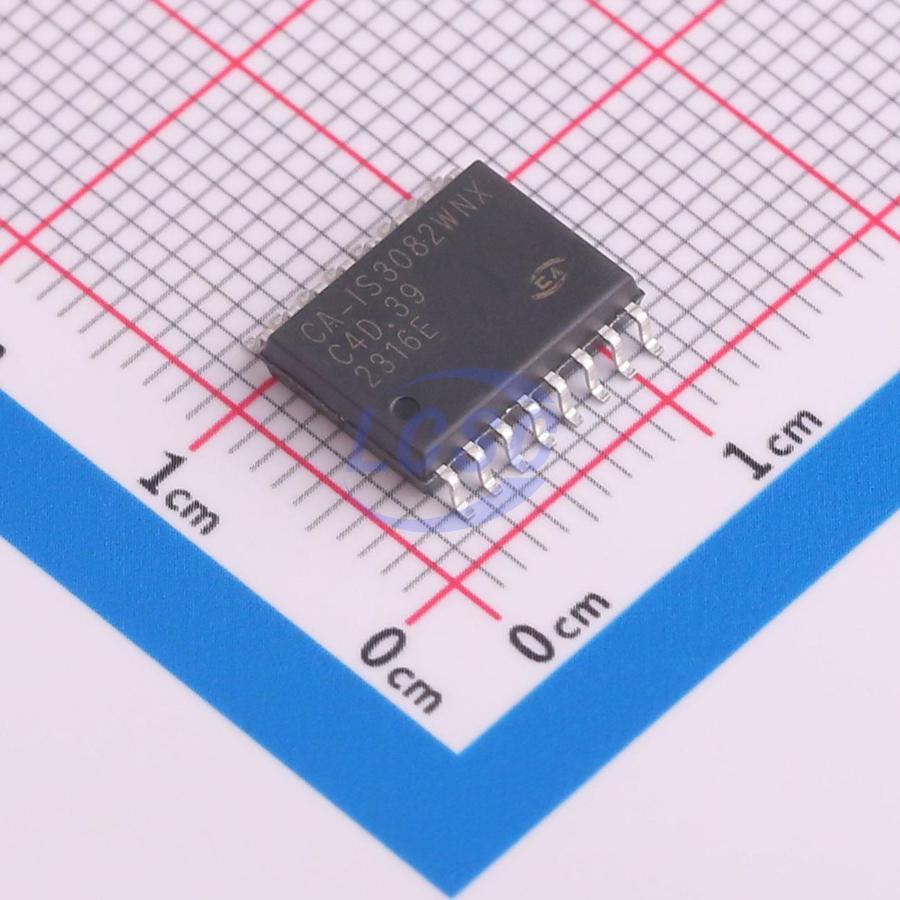

CA-IS3082WNX

The CA-IS308x series are current-isolated RS-485/RS-422 transceivers offering superior isolation performance and RS-485 performance to meet industrial application requirements. All devices in this series feature logic input and output buffers separated by a silicon oxide (SiO2) insulation layer, providing galvanic isolation with up to 5000VRMS (60s) isolation voltage and a typical common-mode transient immunity (CMTI) of ±150kV/μs. The isolation improves communication by breaking ground loops and reduces noise when large ground potential differences exist between ports. CA-IS308x series devices support multi-node communication on the bus with a maximum data rate of 20Mbps, allowing up to 256 transceivers (loads) to be connected on a common bus. Maintaining multipoint operation while increasing the maximum data rate enables more robust system designs for reliable communication. Within the CA-IS308x series, the CA-IS3080 and CA-IS3086 are full-duplex transceivers designed for simultaneous bidirectional data communication over multipoint bus transmission lines. The CA-IS3082 and CA-IS3088 provide half-duplex transceivers, where driver and receiver enable pins allow any node to be configured as either transmit or receive mode at any given time, reducing cabling requirements. CA-IS308x series devices are available in a wide-body SOIC16 package — the industry-standard isolated RS-485/RS-422 package — with an operating temperature range of -40°C to +125°C.

Applications

• Industrial automation equipment
• Grid infrastructure
• Solar inverters
• Motor drives
• HVAC

Key features

• High performance, compliant with RS-485 EIA/TIA-485 standard
• Selectable data rates: 500kbps, 10Mbps, or 20Mbps
• 1/8 unit load, supports up to 256 nodes on the bus
• Logic-side supply voltage: 2.375V to 5.5V; bus-side supply voltage: 3V to 5.5V
• CA-IS3080/86 bus common-mode supply range: -15V to +15V; CA-IS3082/88: -7V to +12V
• Common-mode transient immunity (CMTI): ±150kV/μs (typical)
• Driver-side output current limiting and thermal shutdown protection
• Open-circuit, short-circuit, and bus fault protection
• Wide operating temperature range: -40°C to 125°C
• Wide-body SOIC16-WB(W) package
• Long service life: >40 years
• VDE certified (per DIN EN IEC60747-17 (VDE 0884-17):2021-10)
• UL certified (per UL1577)
• CQC certified (per GB4843.1-2022)
• TUV certified (per EN61010-1:2010+A1)
