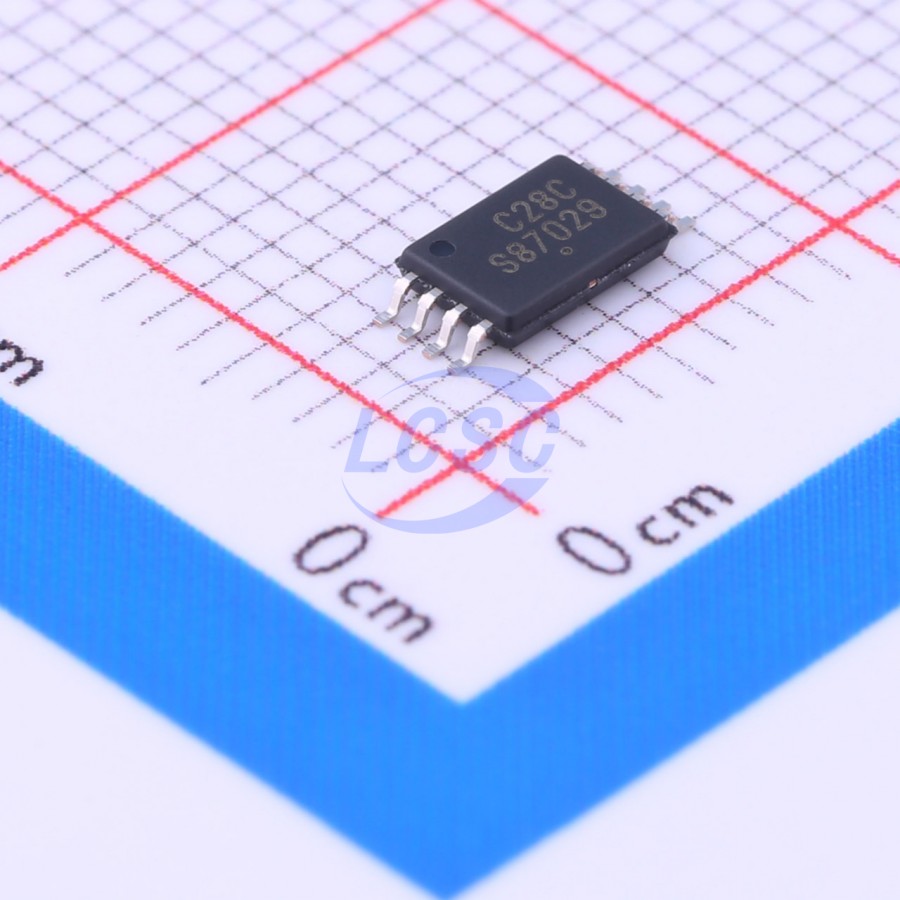

CAT24C128YI-GT3
128Kbit 1MHz I2C TSSOP-8 Memory
EEPROM Serial 128-Kb I2C
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,790 in stock
#C238978
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.66 | ₹53.66 |
| 10+ | ₹41.93 | ₹419.30 |
| 30+ | ₹36.94 | ₹1,108.20 |
| 100+ | ₹30.63 | ₹3,063.00 |
| 500+ | ₹27.81 | ₹13,905.00 |
| 1,000+ | ₹26.29 | ₹26,290.00 |
1 × ₹53.66
₹53.66
excl. GST
₹63.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT24C128YI-GT3
₹53.66 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 3.5us;0.9us;0.4us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The CAT24C128 is a EEPROM Serial 128−Kb I²C internally organized as 16,384 words of 8 bits each. It features a 64−byte page write buffer and supports both the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I²C protocol. Write operations can be inhibited by taking the WP pin High (this protects the entire memory). On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.
Key features
- Supports Standard, Fast and Fast−Plus I²C Protocol
- 1.8 V to 5.5 V Supply Voltage Range
- 64−Byte Page Write Buffer
- Hardware Write Protection for Entire Memory
- Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs (SCL and SDA)
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- This Device is Pb−Free, Halogen Free/BFR Free and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL24C128A-SFRC#C177776BL · TSSOP-8 | BL | TSSOP-8 | 7,660 | ₹19.09 · 7,660 in stock | View |
 | FT24C128A-ETR-T#C417369FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 100 | ₹18.26 · 100 in stock | View |
 | AT24C128C-XHM-T#C616767MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 2,286 | ₹87.50 · 2,286 in stock | View |
 | ZD24C128A-XGMB#C918272Zetta · TSSOP-8 | Zetta | TSSOP-8 | 3,930 | ₹23.27 · 3,930 in stock | View |
 | P24C128D-TSH-MIR#C2977252PUYA · TSSOP-8 | PUYA | TSSOP-8 | 35 | ₹17.48 · 35 in stock | View |
