MICROCHIP

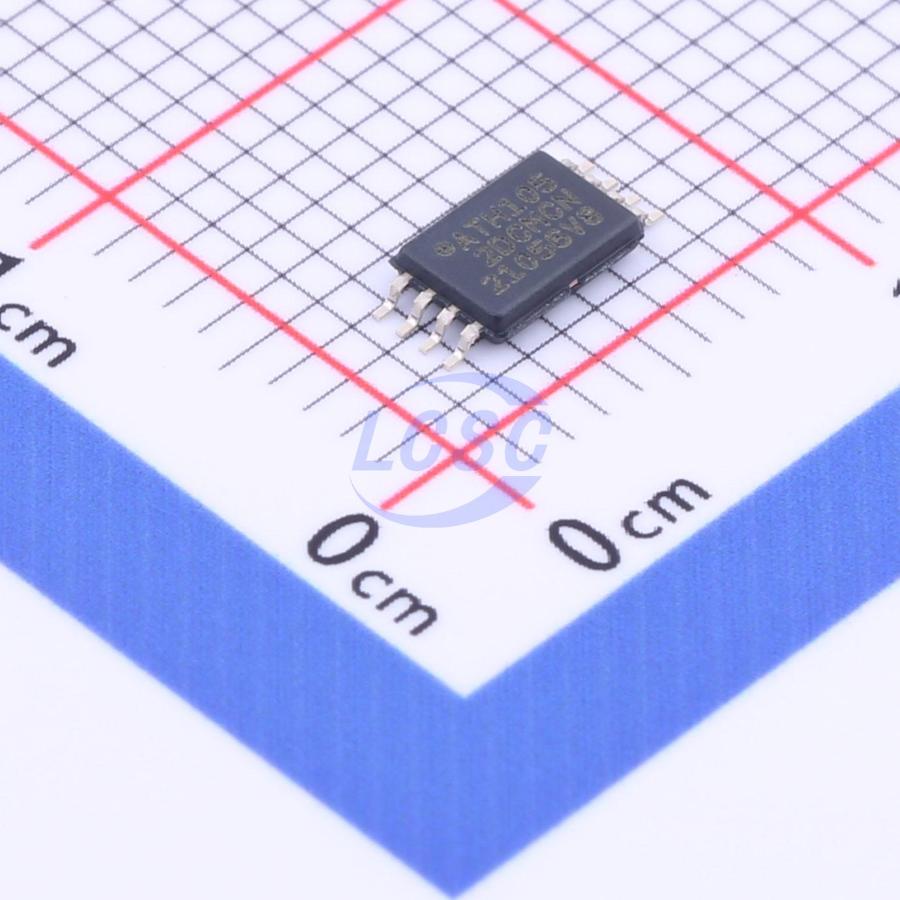

AT24C128C-XHM-T
128Kbit 1MHz I2C TSSOP-8 Memory
TSSOP-8RoHSActive
I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,286 in stock
#C616767
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.50 | ₹87.50 |
| 10+ | ₹71.59 | ₹715.90 |
| 30+ | ₹63.42 | ₹1,902.60 |
| 100+ | ₹55.47 | ₹5,547.00 |
| 500+ | ₹50.74 | ₹25,370.00 |
| 1,000+ | ₹48.38 | ₹48,380.00 |
1 × ₹87.50
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C128C-XHM-T
₹87.50 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 16,384×8 (128K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard Mode, 1.7V to 5.5V
- 400 kHz Fast Mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
- 64-Byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL24C128A-SFRC#C177776BL · TSSOP-8 | BL | TSSOP-8 | 7,625 | ₹19.09 · 7,625 in stock | View |
| ZD24C128A-XGMT#C54406638Zetta · TSSOP-8 | Zetta | TSSOP-8 | 5,945 | ₹23.66 · 5,945 in stock | View | |
 | HE24C128TSH#C691578HUAHONG · TSSOP-8 | HUAHONG | TSSOP-8 | 1,070 | ₹21.06 · 1,070 in stock | View |
 | CAT24C128YI-GT3#C238978onsemi · TSSOP-8 | onsemi | TSSOP-8 | 11,790 | ₹53.66 · 11,790 in stock | View |
 | FT24C128A-ETR-T#C417369FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 100 | ₹18.26 · 100 in stock | View |
