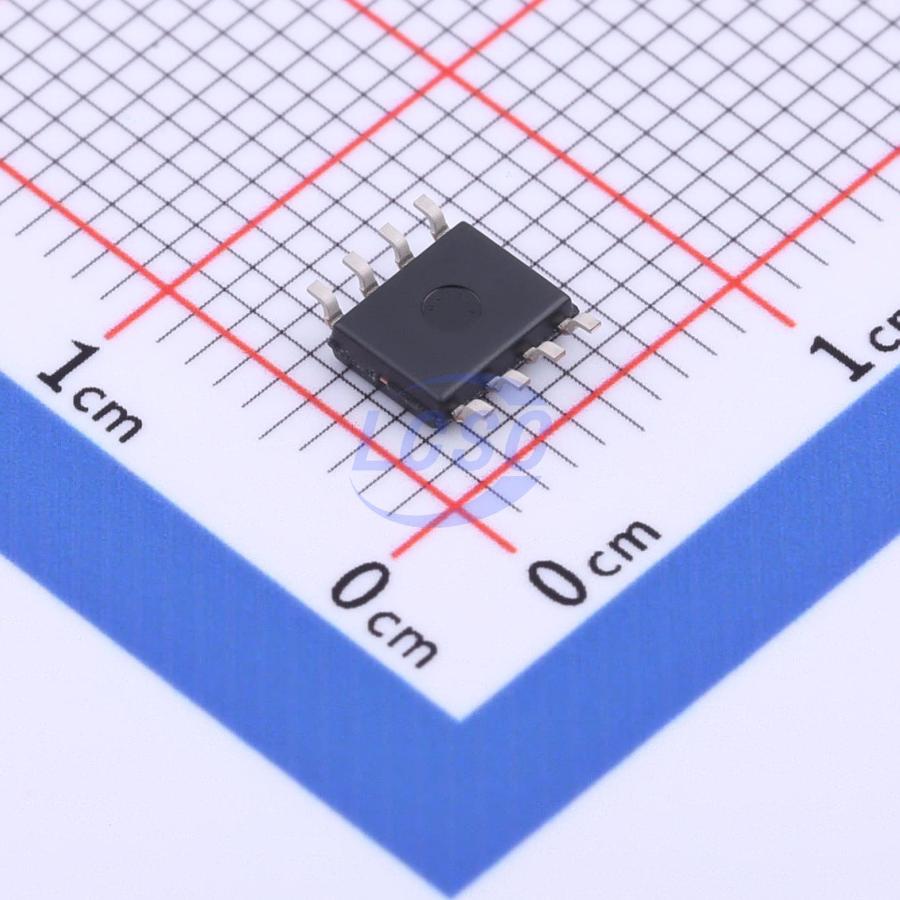

CAT4104V-GT3
175mA PWM 4 25V 3V~5.5V SOIC-8 LED Drivers RoHS
Quad channel Constant Current LED Driver
- Manufacturer
- onsemi
- Manufacturer part #
- CAT4104V-GT3
- Store part #
- C236266
- Package / case
- SOIC-8
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,657 in stock
#C236266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.63 | ₹144.63 |
| 10+ | ₹120.13 | ₹1,201.30 |
| 30+ | ₹106.69 | ₹3,200.70 |
| 100+ | ₹91.51 | ₹9,151.00 |
| 500+ | ₹75.25 | ₹37,625.00 |
| 1,000+ | ₹72.21 | ₹72,210.00 |
1 × ₹144.63
₹144.63
excl. GST
₹170.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT4104V-GT3
₹144.63 for 1 + GST
Specifications
- Output Current
- 175mA
- Operating Temperature
- -40℃~+85℃
- Dimming
- PWM
- Number of Channels
- 4
- Features
- Over-Temperature Protection (OTP)
- Output Voltage
- 25V
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
The CAT4104 provides four matched low dropout current sinks to drive high−brightness LED strings up to 175 mA per channel. The LED channel current is set by an external resistor connected to the RSET pin. The LED pins are compatible with high voltage up to 25 V supporting applications with long strings of LEDs. The EN/PWM logic input supports the device enable and high frequency external Pulse Width Modulation (PWM) dimming control. Thermal shutdown protection is incorporated in the device to disable the LED outputs whenever the die temperature exceeds 150 °C. The device is available in the 8−pad TDFN 2 mm×3 mm package and the SOIC 8−Lead 150 mil wide package.
Applications
- Automotive Lighting
- General and Architectural Lighting
- LCD Backlight
Key features
- 4 Matched LED Current Sinks up to 175 mA
- Up to 25 V Operation on LED Pins
- Low Dropout Current Source (0.4 V at 175 mA)
- LED Current Set by External Resistor High Frequency PWM Dimming via EN/PWM
- “Zero” Current Shutdown Mode
- Thermal Shutdown Protection
- TDFN 8−pad 2 x 3 mm and SOIC 8−lead Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
