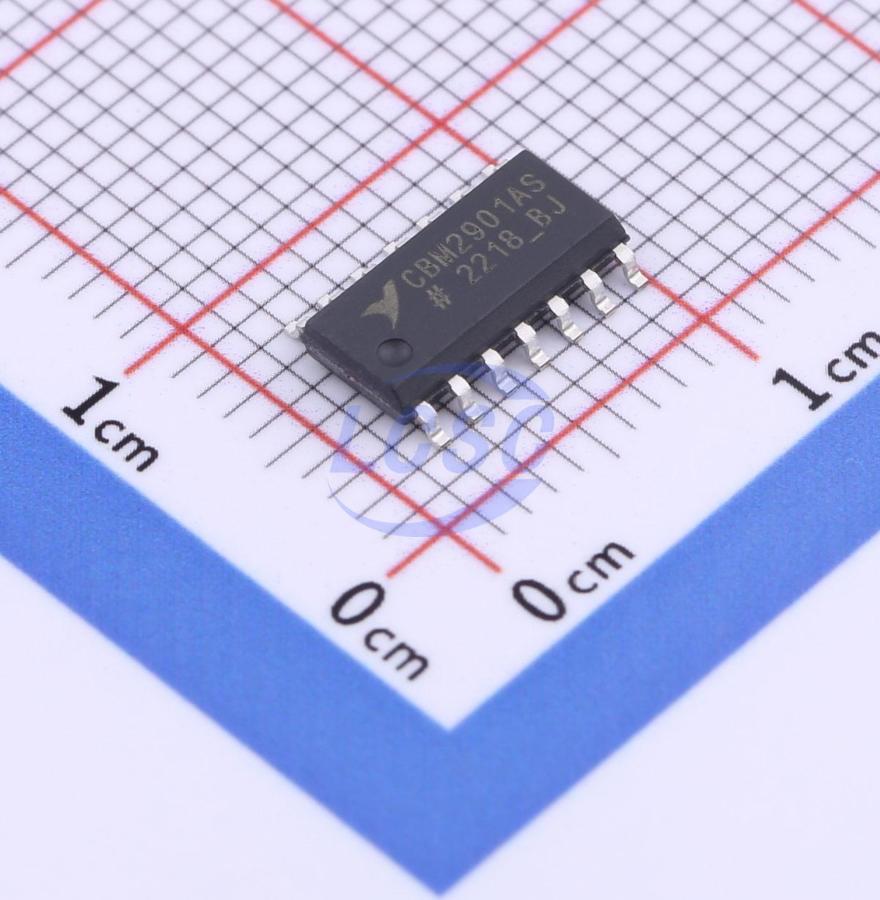

CBM2901AS14
5mV 400nA Four channels SOP-14 Linear Comparators
Single or dual-supply operational comparators
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM2901AS14
- Store part #
- C476368
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,333 in stock
#C476368
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.87 | ₹38.87 |
| 10+ | ₹34.12 | ₹341.20 |
| 30+ | ₹32.18 | ₹965.40 |
| 100+ | ₹29.58 | ₹2,958.00 |
| 500+ | ₹28.50 | ₹14,250.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹38.87
₹38.87
excl. GST
₹45.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CBM2901AS14
₹38.87 for 1 + GST
Specifications
- Quiescent Current
- 2mA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 300ns
- Operating Temperature
- -40℃~+85℃
- Features
- ESD protection
- Dual Supply
- 2.5V~15V;-15V~-2.5V
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 400nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 150nA
- Response Time (tr)
- 1.3us
- Single Supply
- 5V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The CBM2901 consists of four independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for four comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates.
Applications
- limit comparators
- simple analog to digital converters
- pulse, squarewave and time delay generators
- wide range VCO
- MOS clock timers
- multivibrators
- high voltage digital logic gates
Key features
- Single or Split Supply Operation
- Low Input Bias Current
- Low Input Offset Current
- Input Common Mode Voltage Range to Gnd
- Low Output Saturation Voltage
- TTL and CMOS Compatible
