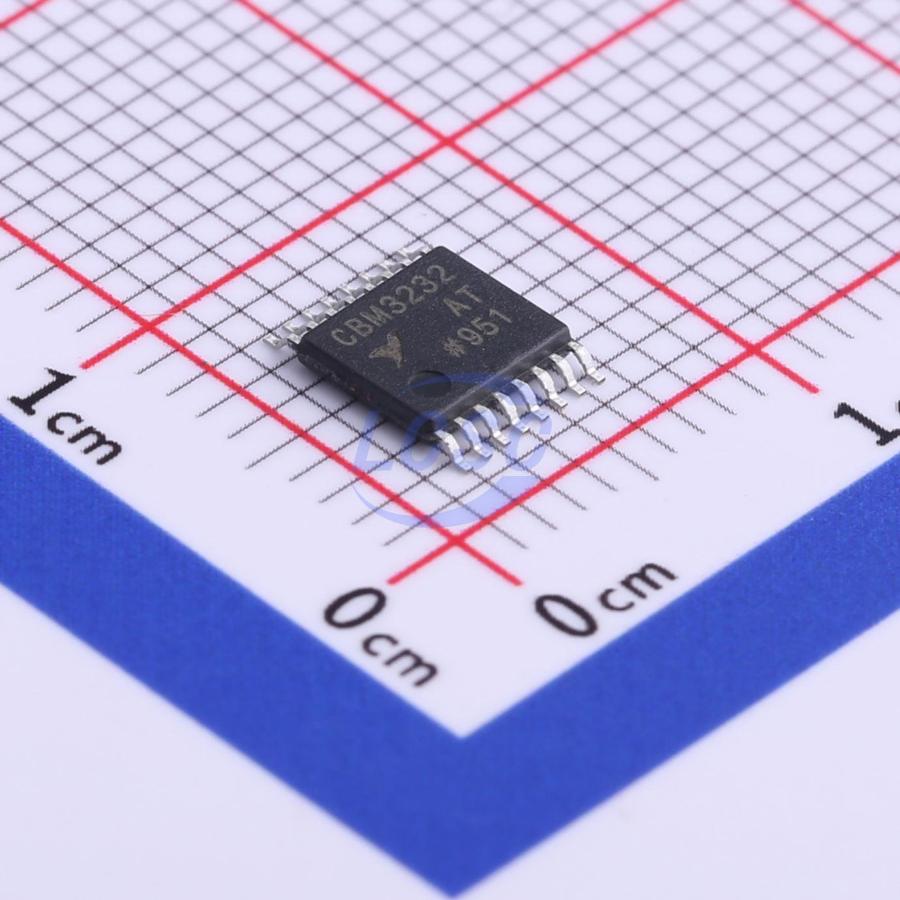

Corebai Microelectronics

CBM3232ATS16

Transceiver 3.3V~5.5V 120Kbps TSSOP-16 Drivers, Receivers, Transceivers

TSSOP-16RoHSActive

CBM3232ATS Operation Instruction

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM3232ATS16
Store part #: C476468
Package / case: TSSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,290 in stock

#C476468

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹93.67	₹93.67
10+	₹76.76	₹767.60
30+	₹68.52	₹2,055.60
100+	₹60.06	₹6,006.00
500+	₹53.13	₹26,565.00
1,000+	₹50.53	₹50,530.00

Quantity (min 1)

1 × ₹93.67

₹93.67

excl. GST

₹110.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CBM3232ATS16

₹93.67 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3.3V~5.5V
Data Rate: 120Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±8kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 10mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.092 g

Overview

The CBM3232 is a 3.3V powered EIA/TIA - 232 and V.28/V.24 communication interface with low power requirements, high data - rate capabilities. CBM3232 has a proprietary low dropout transmitter output stage providing true RS - 232 performance from 3.3V to 5.5V supplies. The device requires only four small 0.1 μF standard external capacitors for operations from 3.3V supply. The CBM3232 has two receivers and two drivers. The device is guaranteed to run at data rates of 120Kbps while maintaining RS - 232 output levels. Typical applications are Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand - Held Equipment, Peripherals and Printers.
