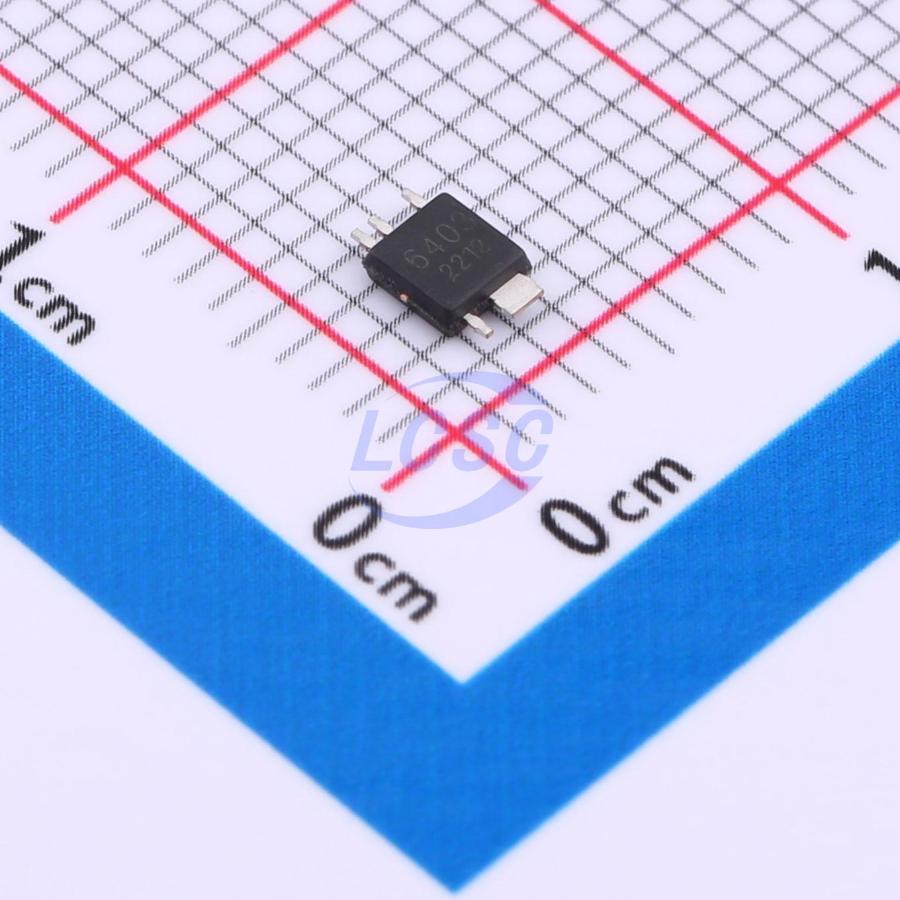

CC6403SS
2.8V~32V SOT-335 Motor Drivers, Controllers RoHS
Single Coil Fan Driver with Auto-start and FG or RD
- Manufacturer
- Cross chip
- Manufacturer part #
- CC6403SS
- Store part #
- C2832986
- Package / case
- SOT-335
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,125 in stock
#C2832986
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.24 | ₹181.20 |
| 50+ | ₹31.98 | ₹1,599.00 |
| 150+ | ₹30.15 | ₹4,522.50 |
| 500+ | ₹27.88 | ₹13,940.00 |
| 2,500+ | ₹23.92 | ₹59,800.00 |
| 5,000+ | ₹23.31 | ₹1,16,550.00 |
5 × ₹36.24
₹181.20
excl. GST
₹213.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CC6403SS
₹181.20 for 5 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection;Motor speed indication
- Technology
- Yes
- Voltage - Supply
- 2.8V~32V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2mA
- Output Current
- 450mA
- Peak Current
- 1.5A
- RDS(on)
- 1.5Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.066 g
Overview
CC6403/4 is a one-chip solution for driving single-coil brushless DC fans and motors, which is fabricated with innovative high voltage BiCMOS process. It includes high sensitivity hall sensor, chopper stabilized amplifier, dynamic offset cancellation, thermal protection and a low RDSON full bridge driver. With the benefit of the advanced process, the chip consumed power is very low, just only 2mA, much smaller than the drivers fabricated by bipolar process. Its robustness perfectly suits for consumer applications. CC6403/4 has auto-restart function. When the fan is mechanically blocking, IC will shutdown the coil current and restart every time until the blocking release. Thus, the current flow the coil is low enough and protect the fan from over-heating. CC6403/4 can withstand the instantaneous 40V high voltage to ensure the reliability of the fan in various application environments. CC6403 has Speed counting function (Tachometer Output FG), CC6404 has Locking alarm function (Alarm Output RD). CC6403/4 is available in two packages, which are SOT89-5 and SOT335. The operation temperature range is -40~125°C.
Applications
- Single Phase BLDC Fans
- Single Phase BLDC Motors
Key features
- Built-in High Sensitivity Hall Sensor
- Low Rdson with 1.5Ω
- Low Power Consumption, Typical 2mA
- Locked Rotor Protection and Auto-restart
- Driving Capability: Maximum Continuous Current: 450mA; Peak Output Current: 1500mA
- Tachometer Output FG(CC6403) or Alarm Output RD(CC6404)
- Superior Temperature Stability
- Resistant to Physical Stress
- ESD (HBM) 6000V
