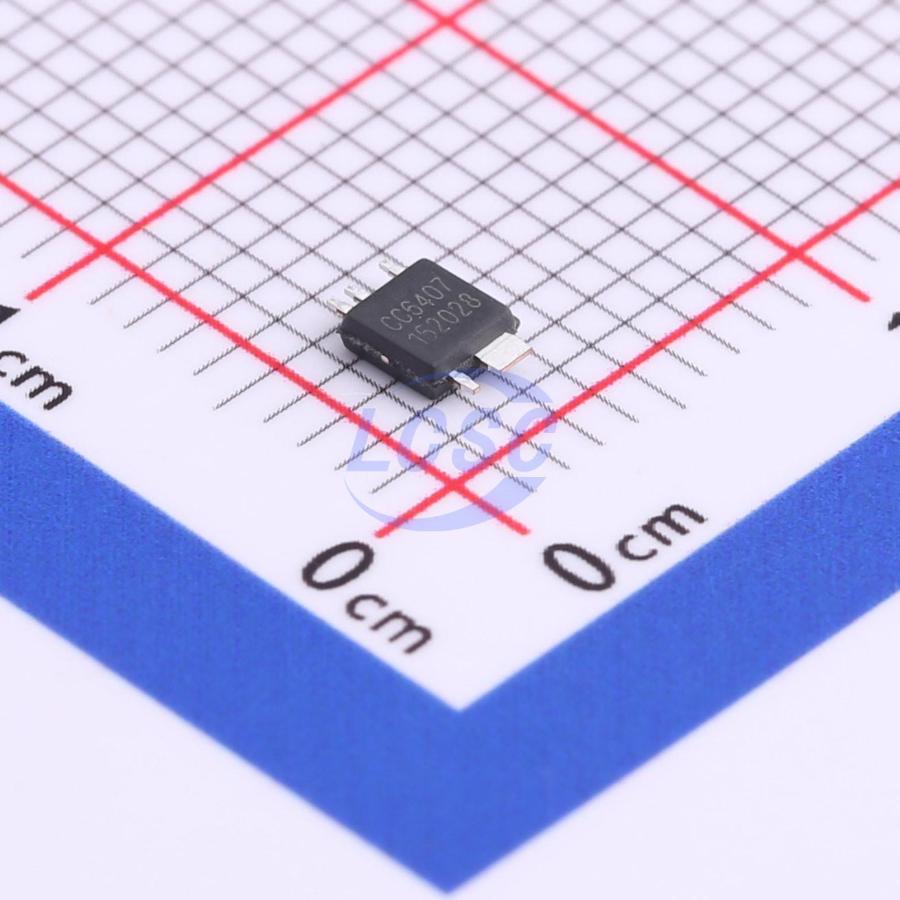

CC6407SS
2V~18V SOT-335 Motor Drivers, Controllers RoHS
- Manufacturer
- Cross chip
- Manufacturer part #
- CC6407SS
- Store part #
- C2832988
- Package / case
- SOT-335
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,550 in stock
#C2832988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.27 | ₹76.35 |
| 50+ | ₹13.47 | ₹673.50 |
| 150+ | ₹12.70 | ₹1,905.00 |
| 500+ | ₹11.75 | ₹5,875.00 |
| 2,500+ | ₹10.08 | ₹25,200.00 |
| 5,000+ | ₹9.82 | ₹49,100.00 |
5 × ₹15.27
₹76.35
excl. GST
₹90.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CC6407SS
₹76.35 for 5 + GST
Specifications
- Drive Type
- Single Phase
- Technology
- Yes
- Voltage - Supply
- 2V~18V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2mA
- Output Current
- 300mA
- Peak Current
- 600mA
- Number of Half Bridges
- 2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
CC6407 is a high-performance single-coil brushless DC motor (fan) driver IC. Manufactured using an innovative high-voltage BiCMOS process, the IC features an optimized Hall sensor and motor drive architecture. It integrates a high-sensitivity Hall sensor, chopper offset cancellation, Hall temperature compensation, over-temperature protection, voltage regulator, low R<sub>DSON</sub> full-bridge driver, and active reverse-voltage protection. The CC6407 features ultra-low power consumption with a quiescent current of only 2.5mA, improving both fan efficiency and reliability. The integrated patented active reverse-voltage protection reduces external components and lowers manufacturing cost. Available in TO-94, TSOT23-6L, and SOT335 packages.
Applications
- Single-coil DC brushless fan
- Single-coil DC brushless motor
Key features
- Built-in high-sensitivity Hall sensor
- Innovative active reverse protection
- Strong drive capability:
- Continuous current: 300mA
- Peak current: 600mA
- Wide operating voltage range: 2~18V
- Excellent temperature stability, ensuring IC performance in extreme environments
- Mechanical stress resistance — magnetic sensitivity unaffected by external pressure
- ESD (HBM) 6000V
