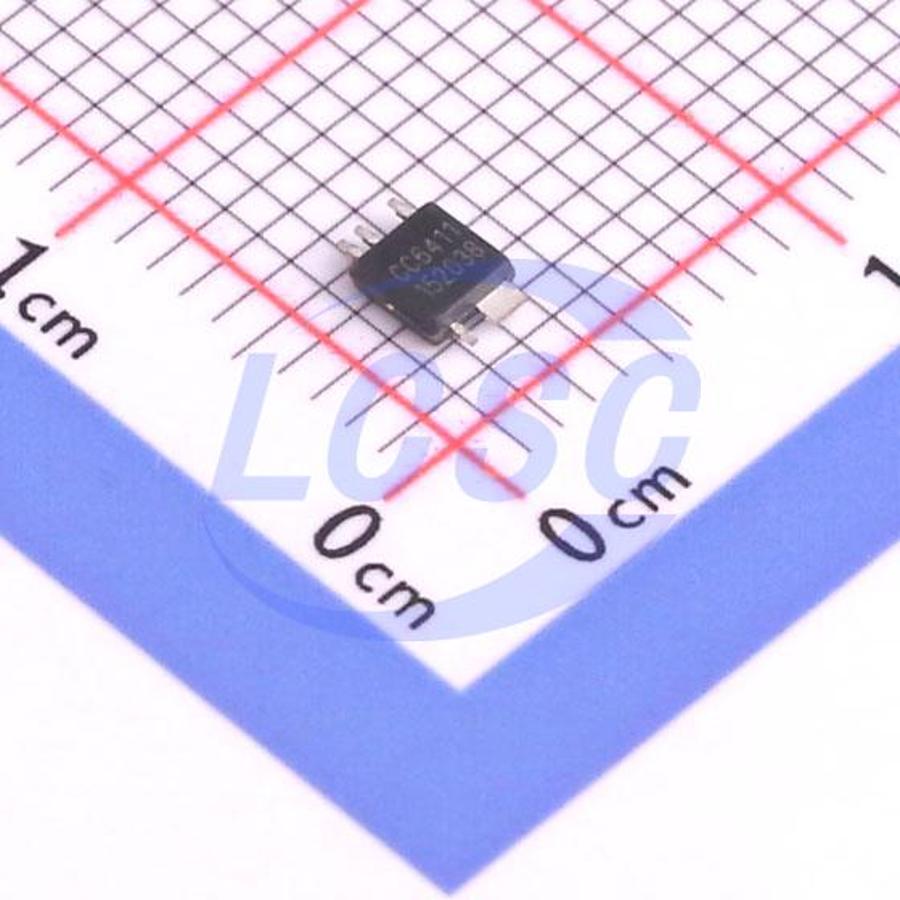

CC6411SS
2.8V~20V SOT-335 Motor Drivers, Controllers RoHS
5V/12V 400mA Single Coil Fan Driver with Auto-start and FG or RD
- Manufacturer
- Cross chip
- Manufacturer part #
- CC6411SS
- Store part #
- C2832991
- Package / case
- SOT-335
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2832991
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.65 | ₹43.65 |
| 10+ | ₹34.50 | ₹345.00 |
| 30+ | ₹30.59 | ₹917.70 |
| 100+ | ₹25.71 | ₹2,571.00 |
| 500+ | ₹23.54 | ₹11,770.00 |
| 1,000+ | ₹20.86 | ₹20,860.00 |
1 × ₹43.65
₹43.65
excl. GST
₹51.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CC6411SS
₹43.65 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection;Motor speed indication
- Technology
- Yes
- Voltage - Supply
- 2.8V~20V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2.5mA
- Output Current
- 400mA
- Number of Half Bridges
- 2
- Peak Current
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
CC6410/1 is a one- chip solution for driving single- coil DC brushless fans and motors, which is fabricated with innovative high voltage BiCMOS process. The IC includes high sensitivity hall sensor, chopper stabilized amplifier, dynamic offset cancellation, thermal protection and a low RBCC full bridge driver. CC6410/1 has auto- restart function. When the fan is mechanically blocking, IC will shutdown the coil current and restart every time until the blocking release. Thus, the current of coil is low enough and protect the fan from over- heating. CC6410/1 has the functions of speed detection (CC6410) and locked rotor detection (CC6411). The open leakage output mode is convenient for the connection between the product and the external interface. CC6410/1 integrated reverse connection protection function, without external reverse connection protection diode, saving cost for customers. CC6410/1 is available in SOT335 package. The operation temperature range is - 40~125℃
Applications
- Single Phase BLDC Fans
- Single Phase BLDC Motors
Key features
- Built-in High Sensitivity Hall Sensor
- Fan Power Reverse connection protection
- Low Power Consumption, Typical 2.5mA
- Locked Rotor Protection and Auto-restart
- Maximum Continuous Driving Current: 400mA
- Tachometer Output FG(CC6410) or Alarm Output RD(CC6411)
- Superior Temperature Stability
- Resistant to Physical Stress
- ESD (HBM) 6000V
