TIDatasheet (PDF)
CD14538BE

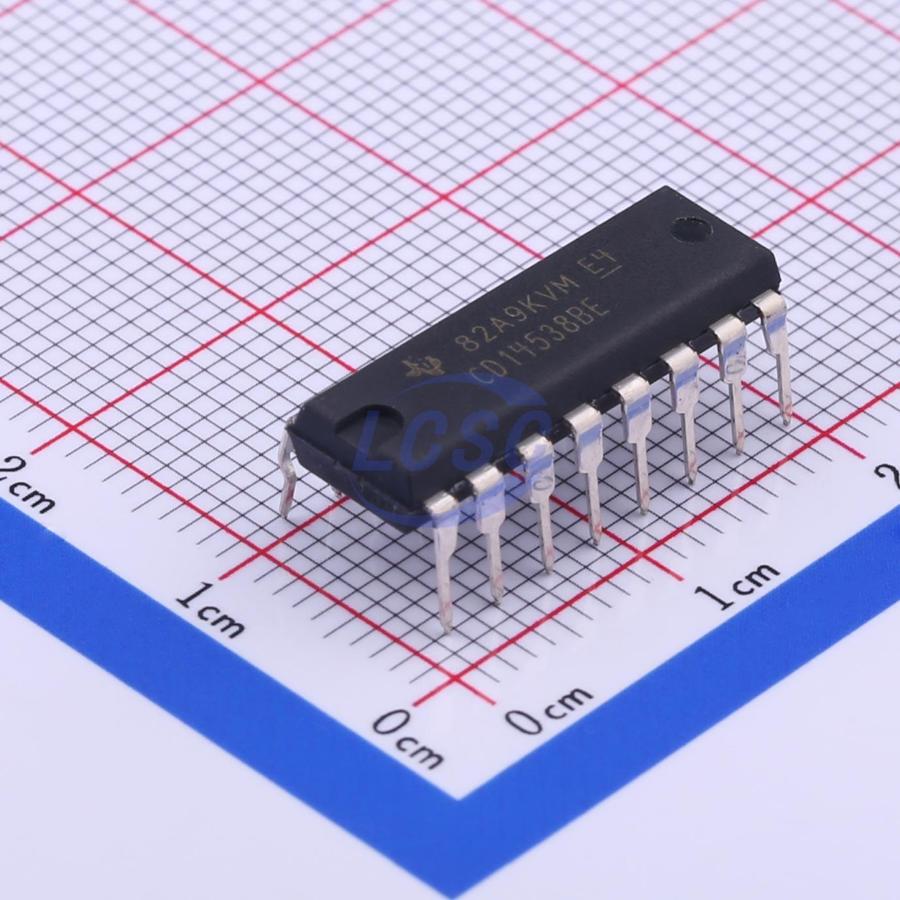

Schmitt trigger DIP-16 Multivibrators RoHS
DIP-16ROHS3 CompliantActive
CMOS Dual Precision Monostable Multivibrator
- Manufacturer
- TI
- Manufacturer part #
- CD14538BE
- Store part #
- C52457
- Package / case
- DIP-16
- Category
- Multivibrators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,678 in stock
#C52457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹448.46 | ₹448.46 |
| 10+ | ₹397.97 | ₹3,979.70 |
| 25+ | ₹343.79 | ₹8,594.75 |
| 100+ | ₹311.59 | ₹31,159.00 |
| 500+ | ₹296.80 | ₹1,48,400.00 |
| 1,000+ | ₹290.49 | ₹2,90,490.00 |
1 × ₹448.46
₹448.46
excl. GST
₹529.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD14538BE
₹448.46 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Type
- Monostable
- Number Of Channels
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.004 g
Overview
Applications
- Pulse delay and timing
- Pulse shaping
Key features
- Retriggerable/resettable capability
- Trigger and reset propagation delays independent of Rx, Cx
- Triggering from leading or trailing edge
- Q and Q(overline) buffered outputs available
- Separate resets
- Replaces CD4538B Type
- Wide range of output pulse widths
- Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs
- 100% tested for maximum quiescent current at 20V
- Maximum input current of 1μA at 18nA over full package-temperature range; 100nA at 18V and 25°C
- Noise margin (full package-temperature range): 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
- 5-V, 10-V, and 15-V parametric ratings
- Standardized, symmetrical output characteristics
- Meets all requirements of JEDEC tentative Standard No.13B, Standard Specifications for Description of B'Series CMOS Devices.
