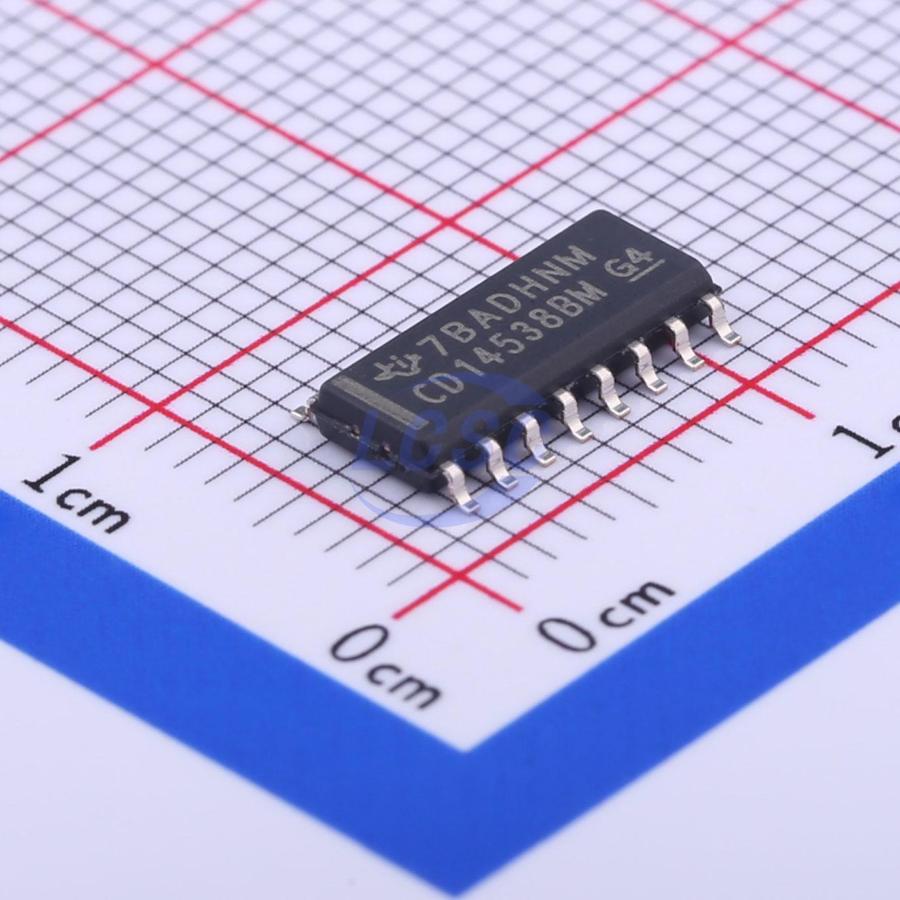

CD14538BM96
Schmitt trigger SOP-16 Multivibrators RoHS
SOP-16ROHS3 CompliantActive
CMOS Dual Precision Monostable Multivibrator
- Manufacturer
- TI
- Manufacturer part #
- CD14538BM96
- Store part #
- C56163
- Package / case
- SOP-16
- Category
- Multivibrators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,760 in stock
#C56163
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.90 | ₹234.50 |
| 50+ | ₹36.25 | ₹1,812.50 |
| 150+ | ₹31.69 | ₹4,753.50 |
| 500+ | ₹25.98 | ₹12,990.00 |
| 2,500+ | ₹23.44 | ₹58,600.00 |
| 5,000+ | ₹21.94 | ₹1,09,700.00 |
5 × ₹46.90
₹234.50
excl. GST
₹276.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD14538BM96
₹234.50 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Type
- Monostable
- Number Of Channels
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
Applications
- Pulse delay and timing
- Pulse shaping
Key features
- Retriggerable/resettable capability
- Trigger and reset propagation delays independent of Rx, Cx
- Triggering from leading or trailing edge
- Q and Q(overline) buffered outputs available
- Separate resets
- Replaces CD4538B Type
- Wide range of output pulse widths
- Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs
- 100% tested for maximum quiescent current at 20V
- Maximum input current of 1μA at 18nA over full package-temperature range; 100nA at 18V and 25°C
- Noise margin (full package-temperature range): 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
- 5-V, 10-V, and 15-V parametric ratings
- Standardized, symmetrical output characteristics
- Meets all requirements of JEDEC tentative Standard No.13B, Standard Specifications for Description of B'Series CMOS Devices.
