XBLWDatasheet (PDF)

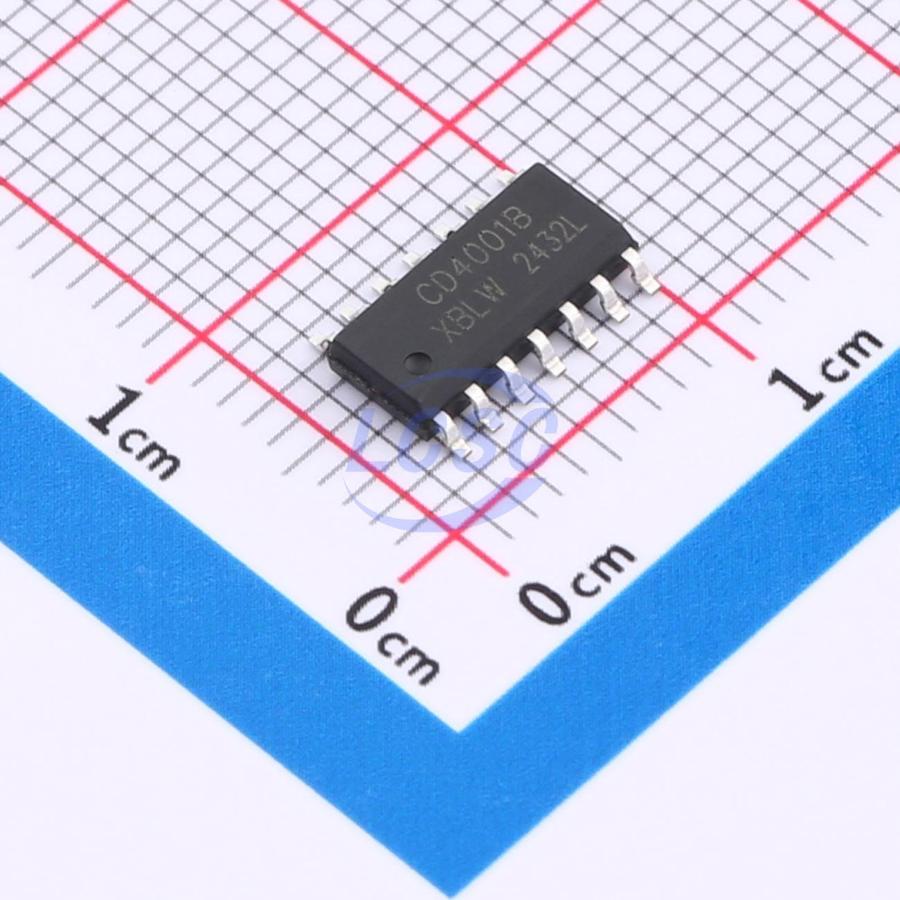

CD4001BDTR(XBLW)
1uA 3V~15V 90ns@15V,50pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-Input NOR Gate
- Manufacturer
- XBLW
- Manufacturer part #
- CD4001BDTR(XBLW)
- Store part #
- C42451386
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,365 in stock
#C42451386
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.17 | ₹70.85 |
| 50+ | ₹11.19 | ₹559.50 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.60 | ₹4,300.00 |
| 2,500+ | ₹7.71 | ₹19,275.00 |
| 5,000+ | ₹7.26 | ₹36,300.00 |
5 × ₹14.17
₹70.85
excl. GST
₹83.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4001BDTR(XBLW)
₹70.85 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.219 g
Overview
The CD4001 is a quad 2-input NOR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40 °C to +85 °C
- Packaging information: DIP-14/SOP-14/TSSOP-14
