TDSEMICDatasheet (PDF)

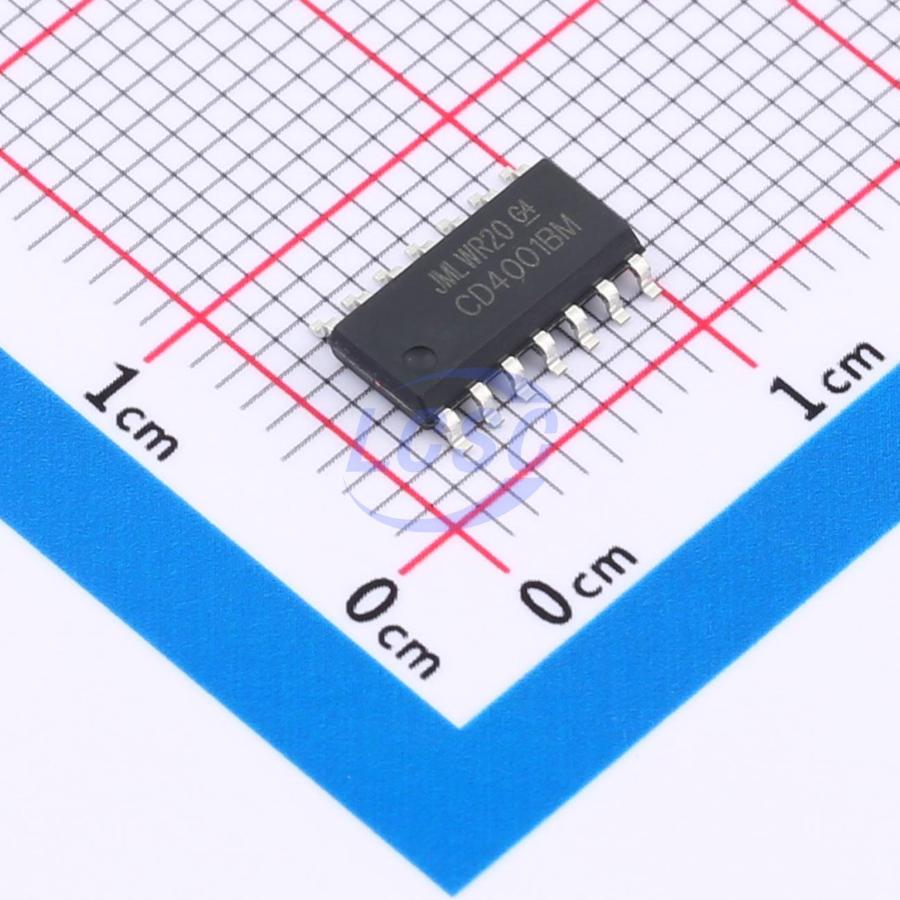

CD4001BM-TD
NOR Gate IC 4 Channel SOP-14
SOP-14ROHS CompliantActive
Quad 2-Input NOR Gates
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CD4001BM-TD
- Store part #
- C42421836
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,700 in stock
#C42421836
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.60 | ₹88.00 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹11.92 | ₹1,788.00 |
| 500+ | ₹10.50 | ₹5,250.00 |
| 2,500+ | ₹9.37 | ₹23,425.00 |
| 5,000+ | ₹8.81 | ₹44,050.00 |
5 × ₹17.60
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4001BM-TD
₹88.00 for 5 + GST
Specifications
- Logic Family
- CD4
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Input Logic Level - High
- 3.5V;7V;11V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 40ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The CD4001B is a quad 2-input NOR gate. All outputs are fully buffered to achieve maximum noise immunity and mode-insensitive output impedance. The recommended operating voltage range for VDD is 3V to 15V, referenced to VSS (typically ground). All unused inputs must be connected to VDD, VSS, or another input. This IC is suitable for industrial applications.
Applications
- Industrial applications
Key features
- Fully static operation
- 5V, 10V, 15V parametric ratings
- Standard and symmetrical output characteristics
- Output-to-output relative quiescent effect protection
- Package: DIP-14/SOP-14/TSSOP-14/QFN-16
