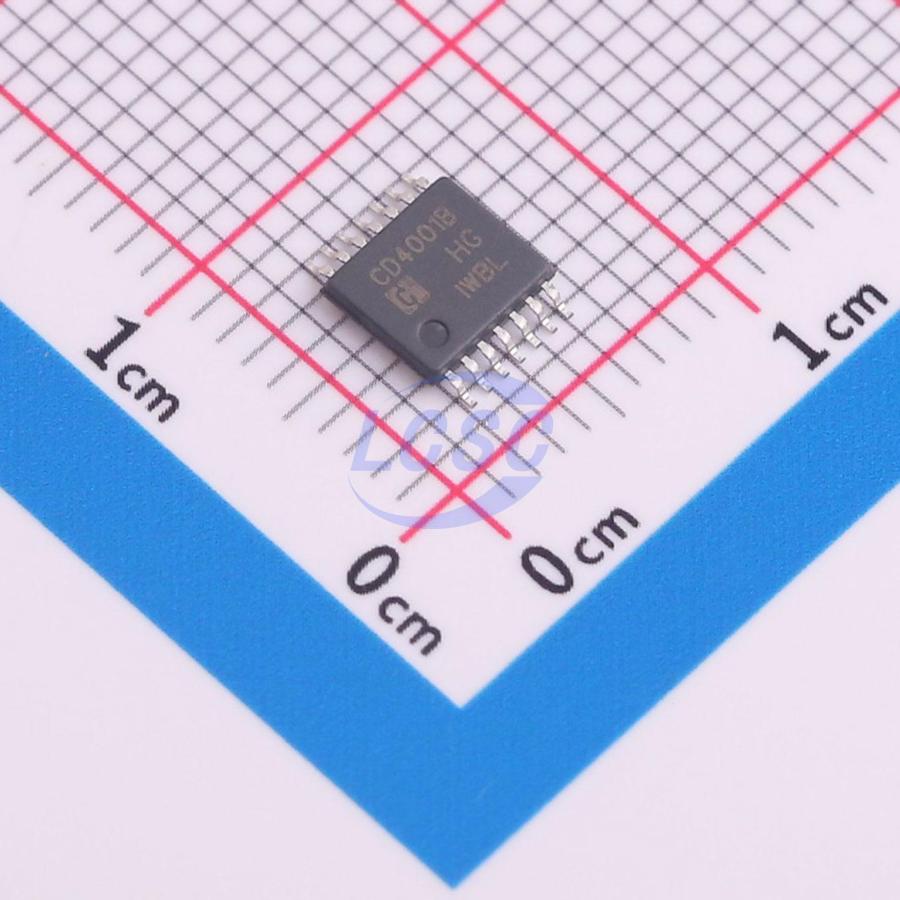

HGSEMI

CD4001BMT/TR

IC Gate 4 Channel TSSOP-14

TSSOP-14RoHSActive

Quad 2-Input NOR Gates

Manufacturer: HGSEMI
Manufacturer part #: CD4001BMT/TR
Store part #: C22396903
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,485 in stock

#C22396903

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.96	₹104.80
50+	₹16.48	₹824.00
150+	₹14.55	₹2,182.50
500+	₹12.16	₹6,080.00
2,500+	₹11.10	₹27,750.00
5,000+	₹10.45	₹52,250.00

Quantity (min 5, multiples of 5)

5 × ₹20.96

₹104.80

excl. GST

₹123.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4001BMT/TR

₹104.80 for 5 + GST

Specifications

Input Logic Level - High: 3.5V;7V;11V
Input Logic Level - Low: 1.5V;3V;4V
Operating Temperature: -40℃~+85℃
Logic Family: 4000 Series
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Current - Output High(IOH): 3.4mA
Number of Channels: 4;2
Output Logic Level - Low: 50mV
Propagation Delay: 60ns@5V,50pF
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

The CD4001B is a quad 2-input NOR gate IC. Its outputs are fully buffered for high output impedance, providing superior noise immunity and low sensitivity to output loading. The device is rated for operation over a supply voltage range of 3V to 15V referenced to VSS. All unused inputs must be connected to VDD, VSS, or another input. This device is suitable for industrial applications.
