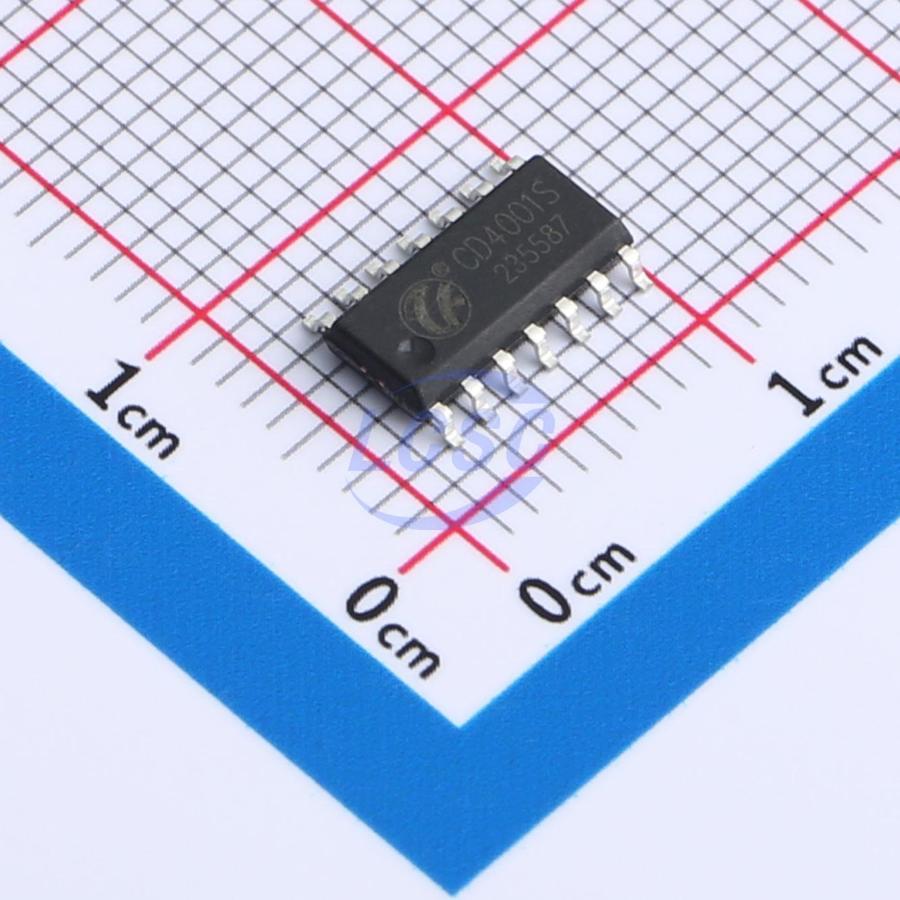

CD4001S
NOR Gate IC 4 Channel SOP-14
SOP-14RoHSActive
Integrated logic IC with four groups of 2-input NOR gates
- Manufacturer
- GR
- Manufacturer part #
- CD4001S
- Store part #
- C22357612
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,355 in stock
#C22357612
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.96 | ₹74.80 |
| 50+ | ₹11.83 | ₹591.50 |
| 150+ | ₹10.27 | ₹1,540.50 |
| 500+ | ₹9.09 | ₹4,545.00 |
| 2,500+ | ₹8.15 | ₹20,375.00 |
| 4,000+ | ₹7.67 | ₹30,680.00 |
5 × ₹14.96
₹74.80
excl. GST
₹88.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4001S
₹74.80 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 3.5V~11V
- Logic Family
- CD4 Series
- Input Logic Level - Low
- 1.5V~4V
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Propagation Delay
- 35ns@15V,47pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
CD4001 is an integrated circuit featuring four 2-input NOR gates, designed using advanced CMOS technology.
Applications
- Logic circuits
- Industrial control applications
- Other application areas
Key features
- Low input current: I_IN ≤ 1uA, @ V_IN = VDD = 18V, Ta = 25°C
- Low quiescent current: typical I_DD = 0.01uA, @ VDD = 18V, Ta = 25°C
- Package: DIP14, SOP14
- Wide supply voltage range: 3V ~ 18V
- 4 dual-input NOR gates
