XBLW

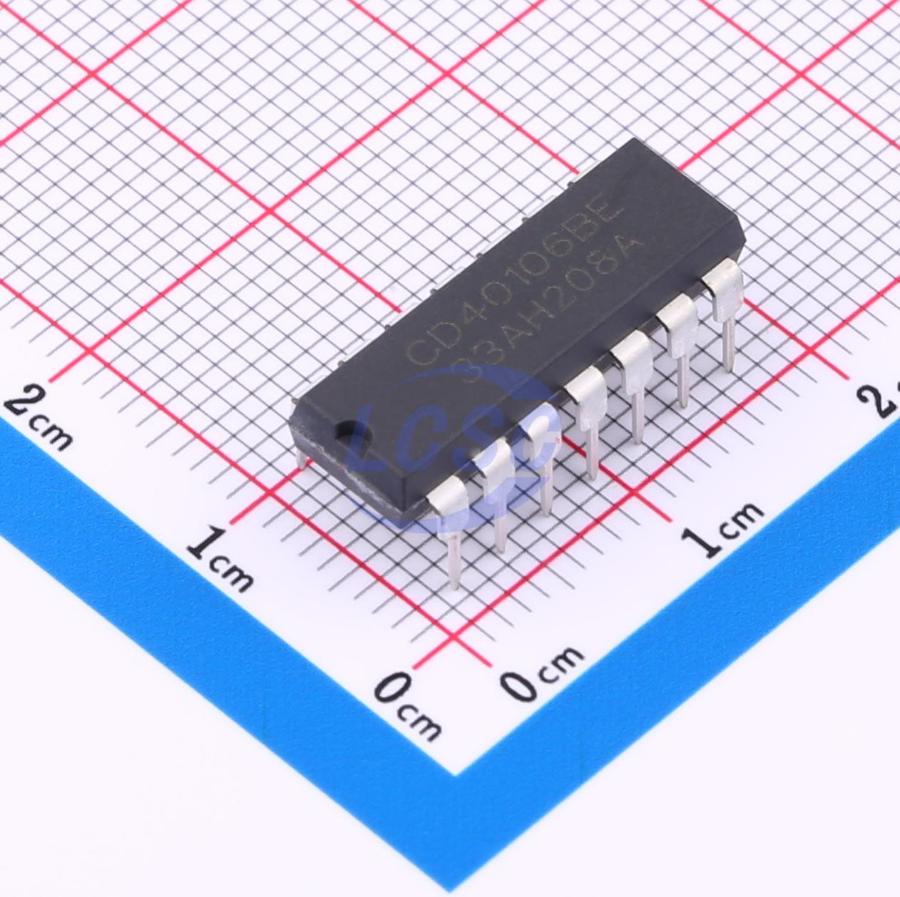

CD40106BE(XBLW)

Schmitt trigger 3V~15V 70ns 1uA 6 DIP-14 Gates and Inverters RoHS

DIP-14ROHS CompliantActive

Hex Inverting Schmitt Trigger

Manufacturer: XBLW
Manufacturer part #: CD40106BE(XBLW)
Store part #: C18723478
Package / case: DIP-14
Category: Gates and Inverters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,275 in stock

#C18723478

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.15	₹80.75
50+	₹12.71	₹635.50
150+	₹10.99	₹1,648.50
500+	₹9.70	₹4,850.00
2,000+	₹8.67	₹17,340.00
5,000+	₹8.15	₹40,750.00

Quantity (min 5, multiples of 5)

5 × ₹16.15

₹80.75

excl. GST

₹95.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

CD40106BE(XBLW)

₹80.75 for 5 + GST

Specifications

Input Type: Schmitt trigger
Voltage - Supply: 3V~15V
Output Logic Level - Low: 50mV
Propagation Delay: 70ns
Features: Noise suppression function
Operating Temperature: -40℃~+105℃
Output Logic Level - High: 10V
Quiescent Current(Iq): 1uA
Number of Channels: 6
Current - Output Low(IOL): 1mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.663 g

Overview

The CD40106 provides six inverting buffers. Each input has a Schmittrigger circuit. The inverting buffer switches at different points for positive-going and negative-going signals. The difference between the positive voltage (V_T(+)) and the negative voltage (V_T) is defined as hysteresis voltage (V_H). 40106 maybe used for enhanced noise immunity or to “square up” slowly changing waveform. It operates over a recommended V_DD power supply range of 3V to 15V referenced to V_SS (usually ground). Unused inputs must be connected to V_DD: Vss, Or another input.
