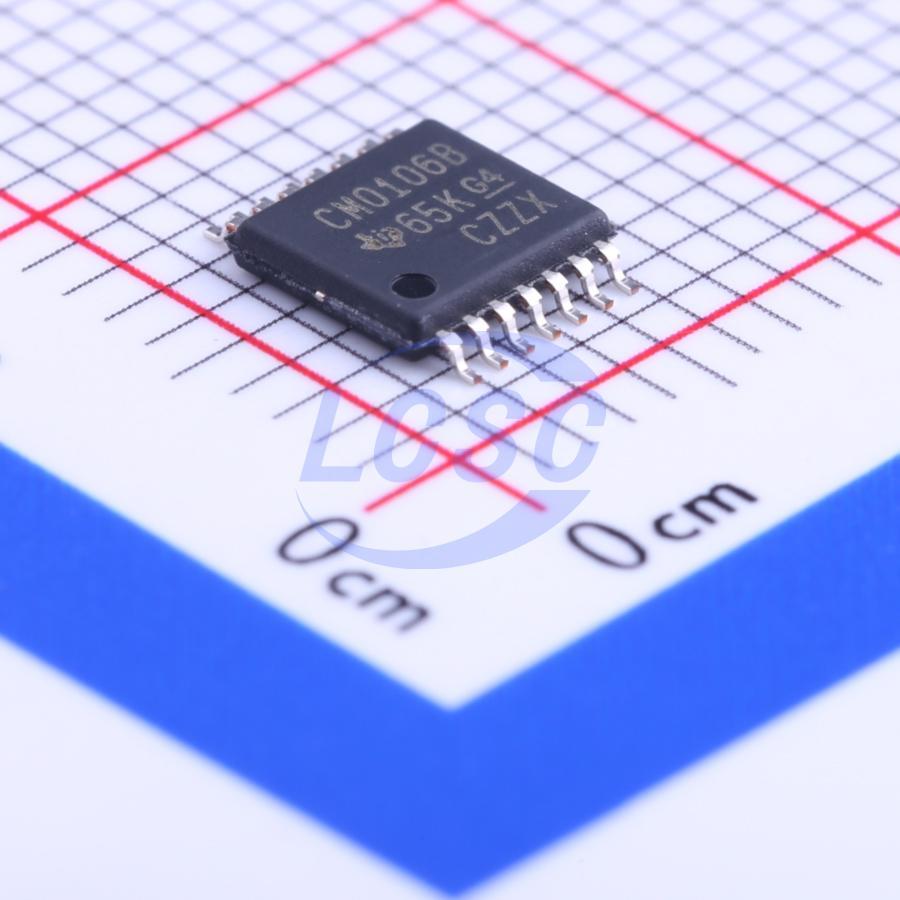

CD40106BPWR

Schmitt trigger 3V~18V 120ns@15V,50pF 4uA 6 TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

CMOS Hex Schmitt Triggers

Manufacturer: TI
Manufacturer part #: CD40106BPWR
Store part #: C58834
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,608 in stock

#C58834

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹90.60	₹90.60
10+	₹76.26	₹762.60
30+	₹69.09	₹2,072.70
100+	₹62.14	₹6,214.00
500+	₹57.80	₹28,900.00
1,000+	₹54.32	₹54,320.00

Quantity (min 1)

1 × ₹90.60

₹90.60

excl. GST

₹106.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

CD40106BPWR

₹90.60 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 4000B
Voltage - Supply: 3V~18V
Output Logic Level - Low: 50mV
Propagation Delay: 120ns@15V,50pF
Features: Noise suppression function
Operating Temperature: -55℃~+125℃
Input Logic Level - High: 3.6V~10.8V
Input Logic Level - Low: 900mV~4V
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 3.4mA
Number of Channels: 6
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

CD40106B consists of six Schmitttrigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage is defined as hysteresis voltage. The CD40106B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Applications

Wave and pulse shapers
High-noise-environment systems
Monostable multivibrators
Astable multivibrators

Key features

Schmitt-trigger action with no external components
Hysteresis voltage (typ.) 0.9 V at VDD = 5 V, 2.3 V at VDD = 10 V, and 3.5 V at VDD = 15 V
Noise immunity greater than 50%
No limit on input rise and fall times
Standardized, symmetrical output characteristics tested for quiescent current at 20 V
Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
Low VDD to Vss current during slow input ramp
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
