HANSCHIP semiconductorDatasheet (PDF)

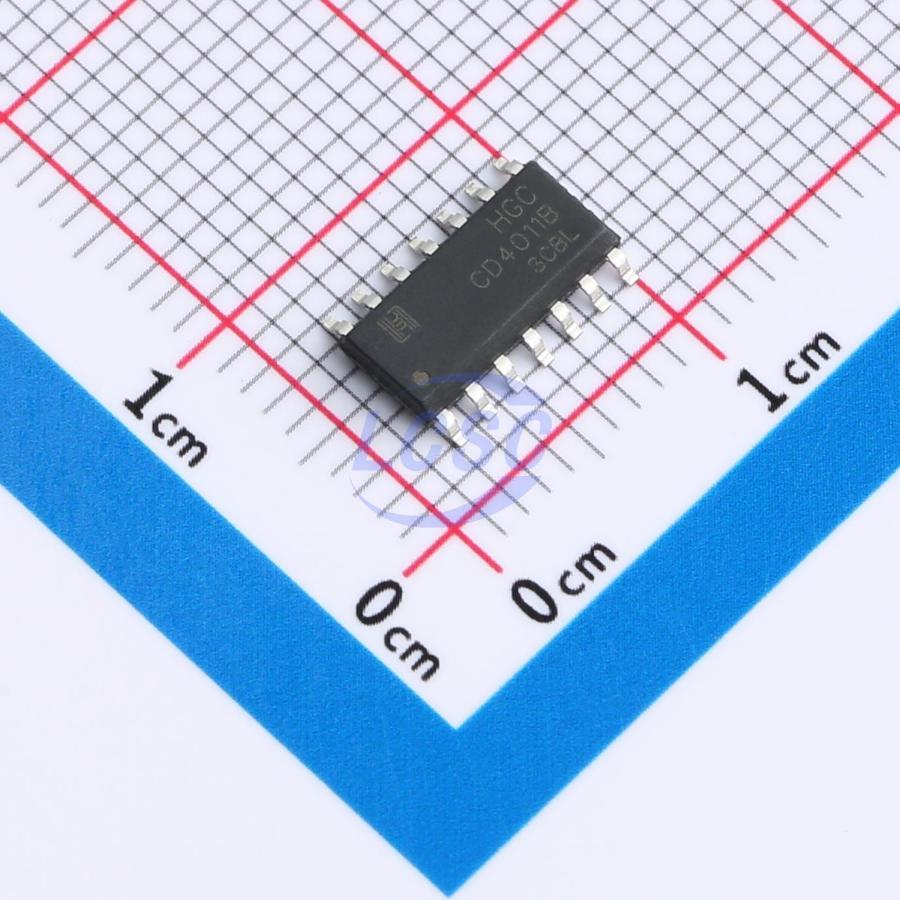

CD4011BDRG
NAND Gate IC 4 Channel SOP-14
SOP-14ROHS CompliantActive
Quad 2-Input NAND Gates
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- CD4011BDRG
- Store part #
- C19723781
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,795 in stock
#C19723781
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.91 | ₹64.55 |
| 50+ | ₹10.21 | ₹510.50 |
| 150+ | ₹8.86 | ₹1,329.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 2,500+ | ₹7.04 | ₹17,600.00 |
| 5,000+ | ₹6.63 | ₹33,150.00 |
5 × ₹12.91
₹64.55
excl. GST
₹76.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4011BDRG
₹64.55 for 5 + GST
Specifications
- Logic Family
- CD4
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Current - Output High(IOH)
- 3.6mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 20ns@15V,50pF
- Current - Output Low(IOL)
- 3.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.312 g
Overview
CD4011B is a quad 2-input NAND gate with buffered outputs for improved noise immunity and reduced output impedance requirements. CD4011B is available in DIP-14/SOP-14/TSSOP-14 packages.
