TDSEMICDatasheet (PDF)

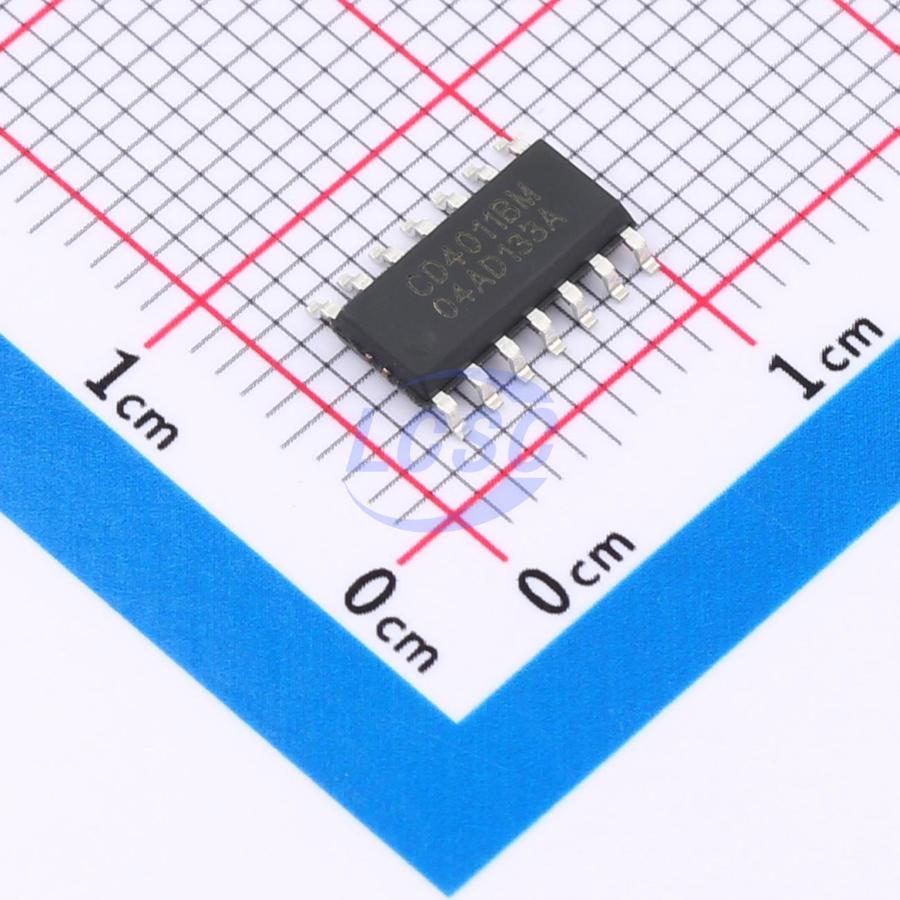

CD4011BM-TD
NAND Gate IC 4 Channel SOP-14
SOP-14ROHS CompliantActive
Quad 2-Input NAND Gates
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CD4011BM-TD
- Store part #
- C42421838
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,685 in stock
#C42421838
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.15 | ₹65.75 |
| 50+ | ₹10.36 | ₹518.00 |
| 150+ | ₹8.96 | ₹1,344.00 |
| 500+ | ₹7.91 | ₹3,955.00 |
| 2,500+ | ₹7.08 | ₹17,700.00 |
| 4,000+ | ₹6.65 | ₹26,600.00 |
5 × ₹13.15
₹65.75
excl. GST
₹77.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4011BM-TD
₹65.75 for 5 + GST
Specifications
- Logic Family
- CD4
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Input Logic Level - High
- 3.5V;7V;11V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 30uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3.6mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 35ns@15V,50pF
- Current - Output Low(IOL)
- 3.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
CD4011B is a quad 2-input NAND gate with buffered outputs for improved noise immunity and reduced output impedance requirements. Available in DIP-14/SOP-14/TSSOP-14 packages.
