Wuxi I-core ElecDatasheet (PDF)

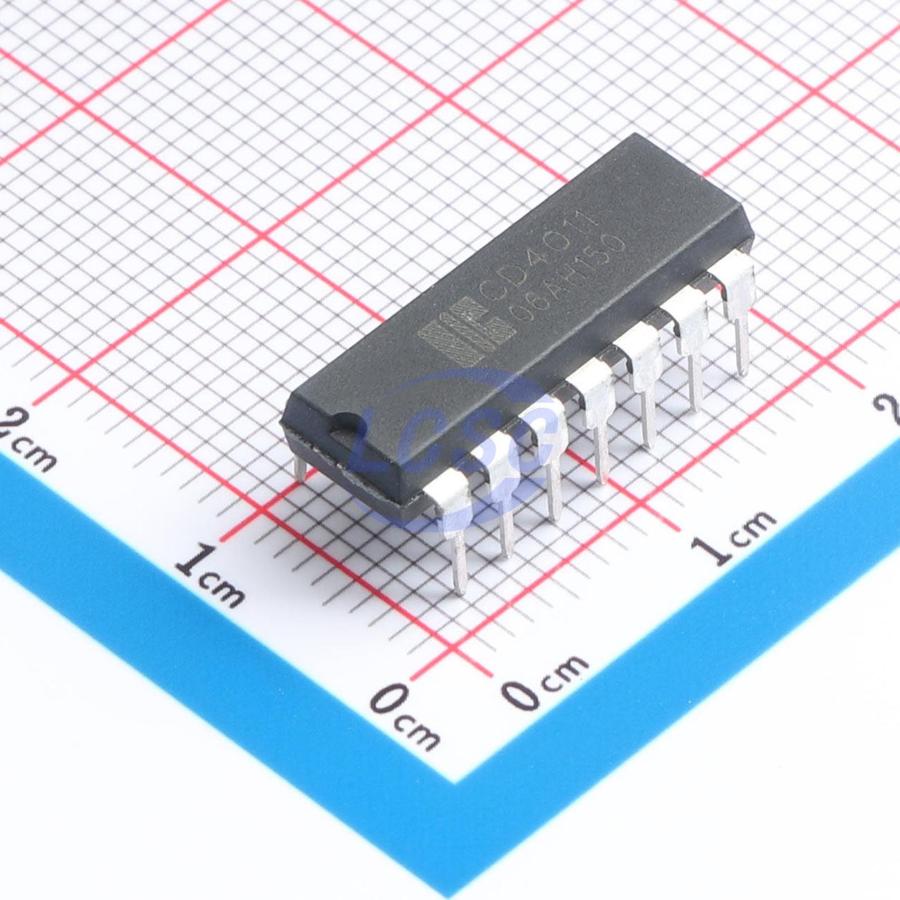

CD4011DA14.TB
1uA 3V~15V DIP-14 Gates and Inverters
DIP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- CD4011DA14.TB
- Store part #
- C51939974
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C51939974
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.67 | ₹118.35 |
| 50+ | ₹18.72 | ₹936.00 |
| 150+ | ₹16.60 | ₹2,490.00 |
| 500+ | ₹13.96 | ₹6,980.00 |
| 2,000+ | ₹12.78 | ₹25,560.00 |
| 5,000+ | ₹12.08 | ₹60,400.00 |
5 × ₹23.67
₹118.35
excl. GST
₹139.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4011DA14.TB
₹118.35 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 250ns@5V,50pF;120ns@10V,50pF;90ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.305 g
Overview
CD4011 is a quad 2-input NAND gate. Its outputs are fully buffered for the highest noise immunity and pattern-insensitive immunity to output impedance. The recommended operating supply voltage VDD ranges from 3V to 15V, referenced to VSS (typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40°C to +125°C
- Package options: DIP14, SOP14, TSSOP14
