Wuxi I-core ElecDatasheet (PDF)

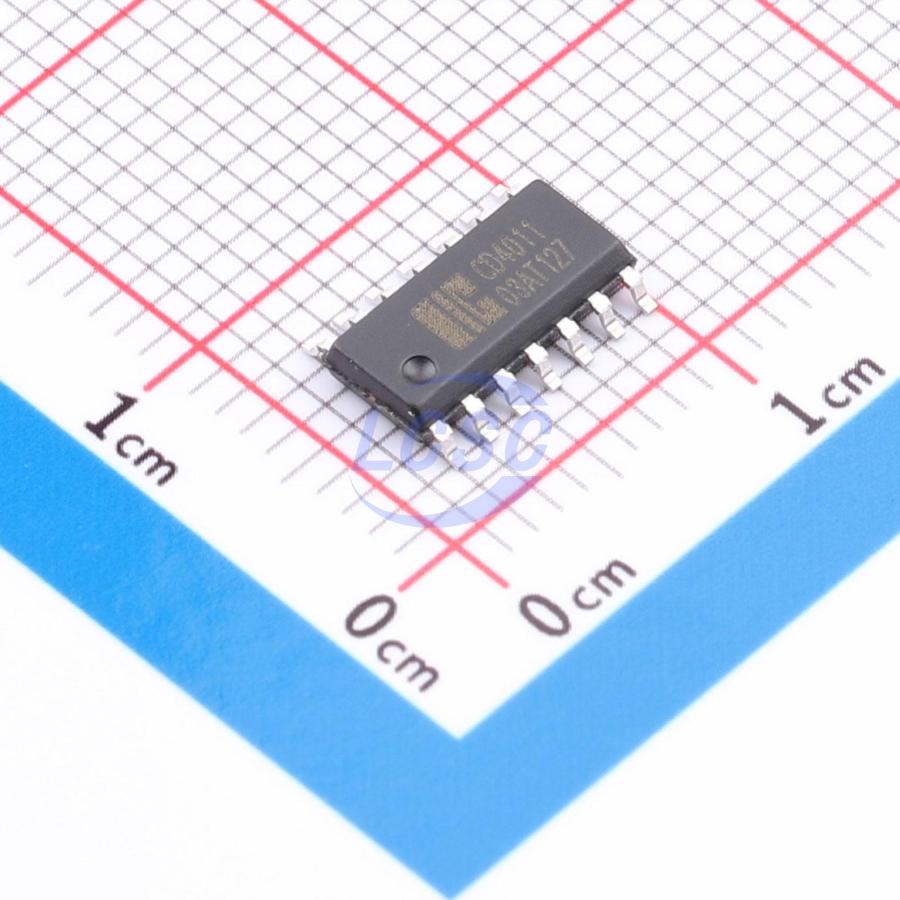

CD4011SA14.TR
1uA 3V~15V SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- CD4011SA14.TR
- Store part #
- C51939975
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,775 in stock
#C51939975
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.31 | ₹81.55 |
| 50+ | ₹12.98 | ₹649.00 |
| 150+ | ₹11.31 | ₹1,696.50 |
| 500+ | ₹10.05 | ₹5,025.00 |
| 2,500+ | ₹9.05 | ₹22,625.00 |
| 4,000+ | ₹8.56 | ₹34,240.00 |
5 × ₹16.31
₹81.55
excl. GST
₹96.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4011SA14.TR
₹81.55 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 250ns@5V,50pF;120ns@10V,50pF;90ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.242 g
Overview
CD4011 is a quad 2-input NAND gate. Its outputs are fully buffered for the highest noise immunity and pattern-insensitive immunity to output impedance. The recommended operating supply voltage VDD ranges from 3V to 15V, referenced to VSS (typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40°C to +125°C
- Package options: DIP14, SOP14, TSSOP14
