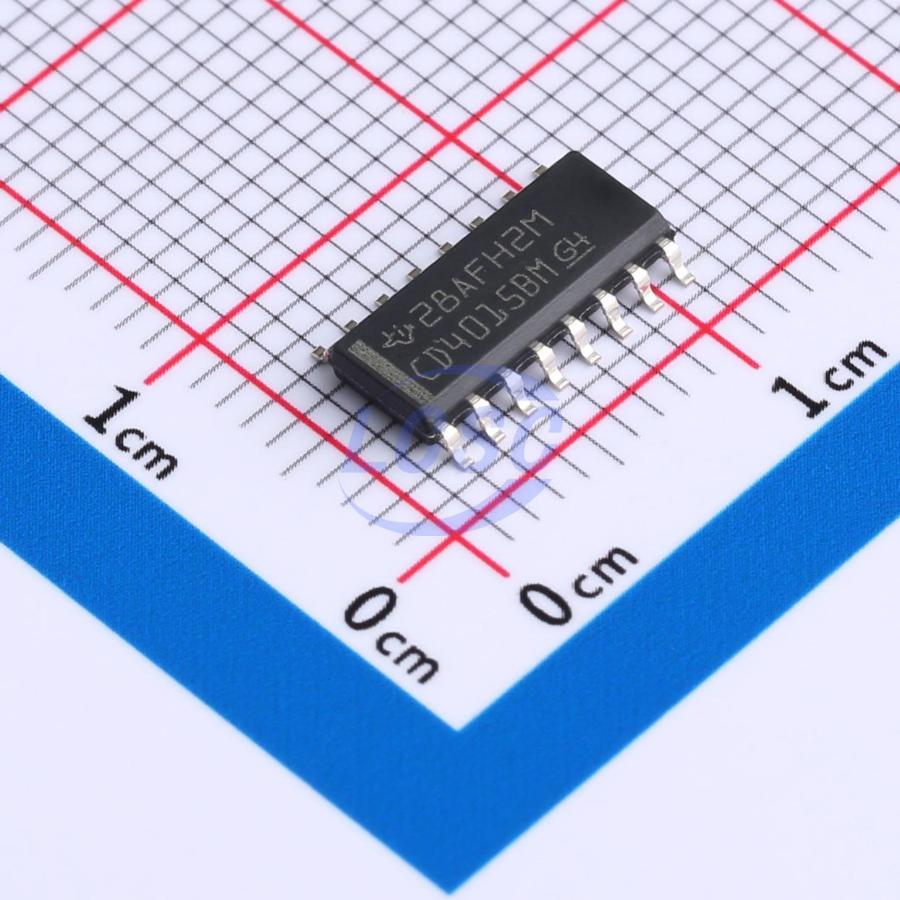

CD4015BM96

CD4015B consists of two identical, independent, 4-stage serial-input/parallel-output registers. Each register has independent CLOCK and RESET inputs as well as a single serial DATA input. "Q" outputs are available from each of the four stages on both registers. All register stages are D-type, master-slave flip-flops. The logic level present at the DATA input is transferred into the first register stage and shifted over one stage at each positive-going clock transition. Resetting of all stages is accomplished by a high level on the reset line. Register expansion to 8 stages using one CD4015B package, or to more than 8 stages using additional CD4015B's is possible.

Applications

• Serial-input/parallel-output data queueing
• Serial to parallel data conversion
• General-purpose register

Key features

• Medium speed operation... 12 MHz (typ.) clock rate at VDD - VSS = 10 V
• Fully static operation
• 8 master-slave flip-flops plus input and output buffering
• 100% tested for quiescent current at 20 V
• 5-V, 10-V, and 15-V parametric ratings
• Standardized, symmetrical output characteristics
• Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25℃
• Noise margin (full package-temperature range): ± 1V at VDD = 5 V, 2V at VDD = 10 V, 2.5 V at VDD = 15 V
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
