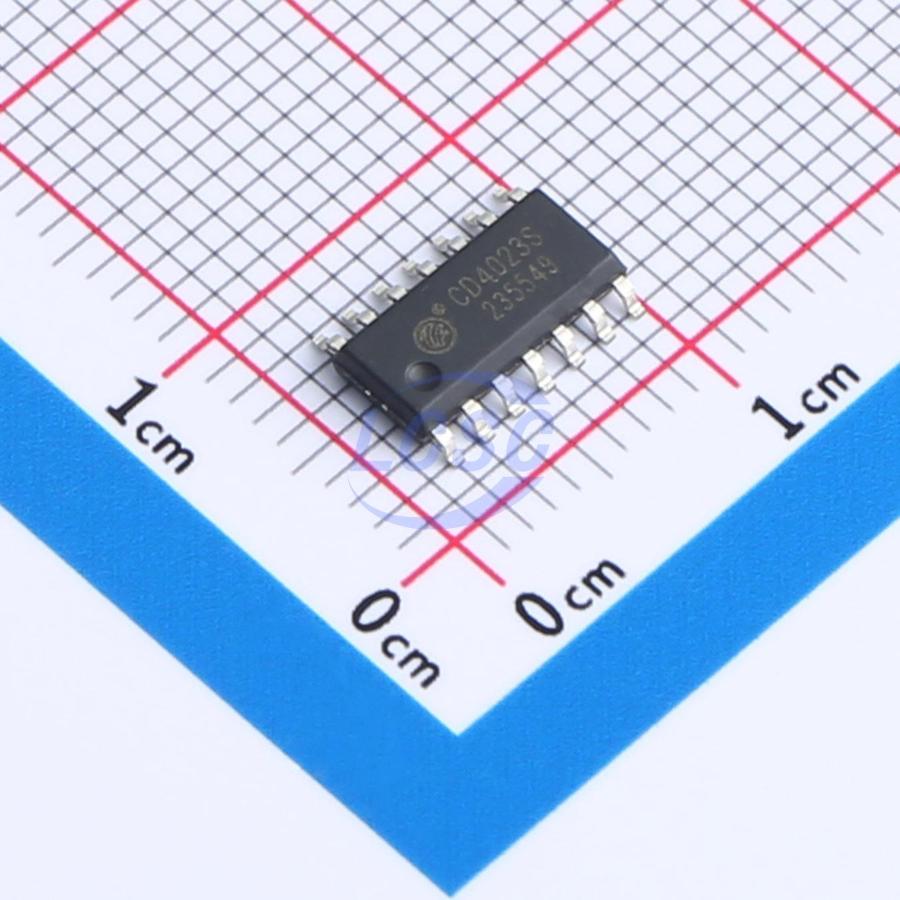

CD4023S
NAND Gate IC 3 Channel SOP-14
SOP-14RoHSActive
Three-input NAND gate integrated circuit
- Manufacturer
- GR
- Manufacturer part #
- CD4023S
- Store part #
- C19818879
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C19818879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.34 | ₹121.70 |
| 50+ | ₹21.02 | ₹1,051.00 |
| 150+ | ₹19.61 | ₹2,941.50 |
| 500+ | ₹17.83 | ₹8,915.00 |
| 2,500+ | ₹17.05 | ₹42,625.00 |
| 4,000+ | ₹16.58 | ₹66,320.00 |
5 × ₹24.34
₹121.70
excl. GST
₹143.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4023S
₹121.70 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 3.5V~11V
- Logic Family
- CD4 Series
- Input Logic Level - Low
- 1.5V~4V
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 10mA
- Propagation Delay
- 40ns@15V,51pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 17mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
CD4023 is a low-power, wide supply voltage range triple 3-input NAND gate IC designed using advanced CMOS technology. It integrates three independent 3-input NAND gate circuits, with buffered inputs and outputs, offering excellent noise immunity and drive capability.
Applications
- Digital logic driving, industrial control applications
Key features
- Low input current: IIN ≤ 1μA, @VIN = VDD = 15V, Ta = 25℃
- Low quiescent power consumption: IDD ≤ 1μA, @VDD = 15V, Ta = 25℃
- Wide operating voltage range: 3.0V to 15.0V
- Package types: DIP14, SOP14
