lingxingicDatasheet (PDF)

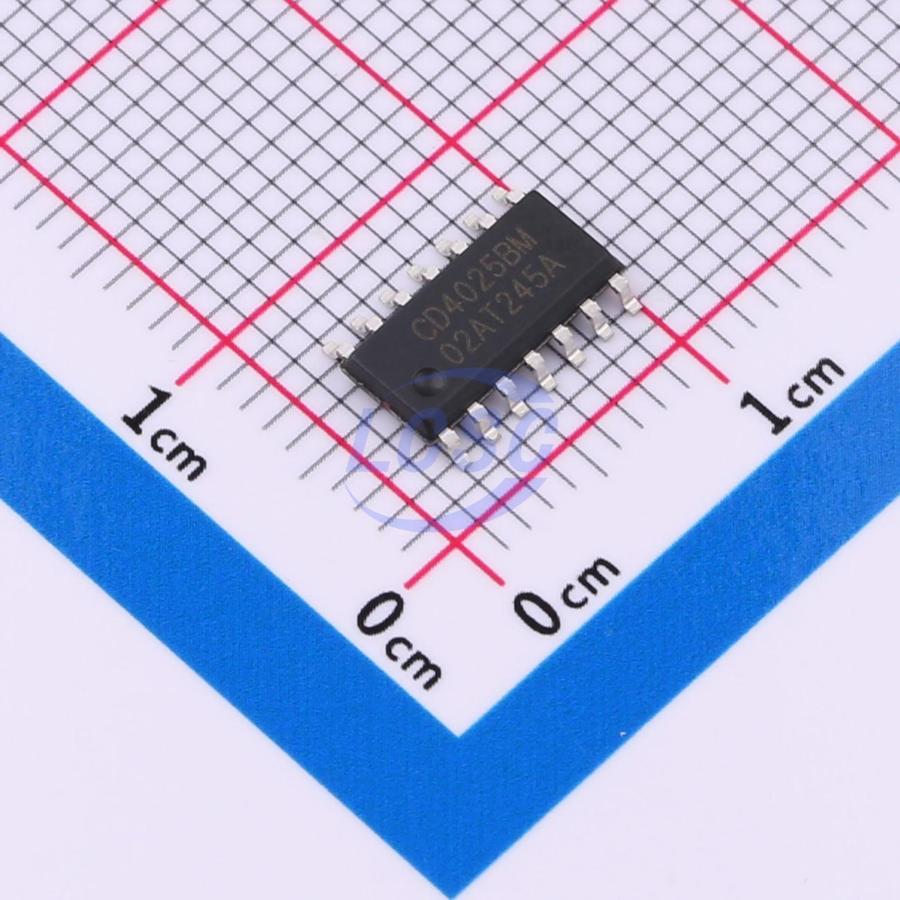

CD4025BM(LX)
1uA 3V~15V 90ns@15V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Triple 3-input Nor Gate
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4025BM(LX)
- Store part #
- C22397237
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,775 in stock
#C22397237
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.42 | ₹147.10 |
| 50+ | ₹23.52 | ₹1,176.00 |
| 150+ | ₹21.00 | ₹3,150.00 |
| 500+ | ₹17.83 | ₹8,915.00 |
| 2,500+ | ₹16.43 | ₹41,075.00 |
| 4,000+ | ₹15.58 | ₹62,320.00 |
5 × ₹29.42
₹147.10
excl. GST
₹173.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4025BM(LX)
₹147.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.5V~4V
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 6.8mA
- Propagation Delay
- 90ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.251 g
Overview
The CD4025 is a triple 3-input NOR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40°C to +125°C
- Packaging information: DIP14/SOP14/TSSOP14
