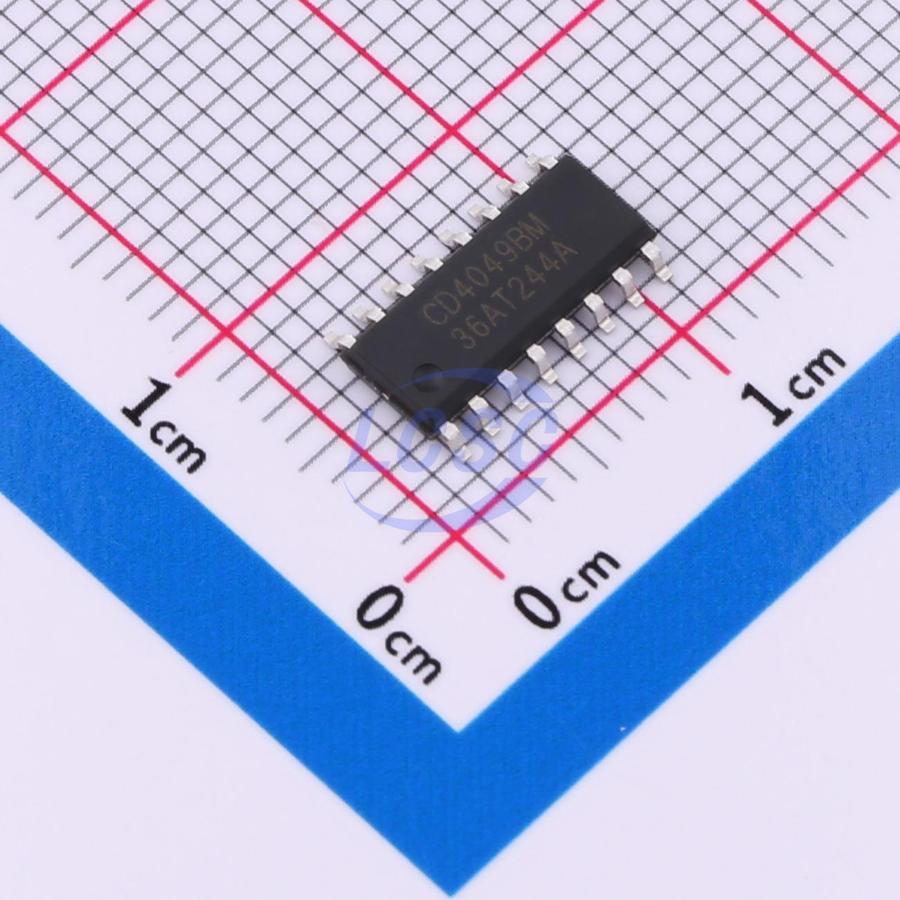

CD4049BM(LX)
3V~15V 40ns@15V,50pF 16uA 6 SOP-16 Gates and Inverters
SOP-16RoHSActive
Hex Inverting Buffer
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4049BM(LX)
- Store part #
- C22397243
- Package / case
- SOP-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C22397243
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.34 | ₹126.70 |
| 50+ | ₹19.88 | ₹994.00 |
| 150+ | ₹17.56 | ₹2,634.00 |
| 500+ | ₹14.66 | ₹7,330.00 |
| 2,500+ | ₹13.36 | ₹33,400.00 |
| 4,000+ | ₹12.58 | ₹50,320.00 |
5 × ₹25.34
₹126.70
excl. GST
₹149.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4049BM(LX)
₹126.70 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 4000
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 40ns@15V,50pF
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 16uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 3mA
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
The CD4049 provides six inverting buffers with high current output capability suitable for driving TTL or high capacitive loads. Since input voltages in excess of the buffers’ supply voltage are permitted, the buffers may also be used to convert logic levels of up to 15V to standard TTL levels. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Accepts input voltages in excess of the supply voltage
- 5V, 10V, and 15V parametric ratings
- Specified from -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
