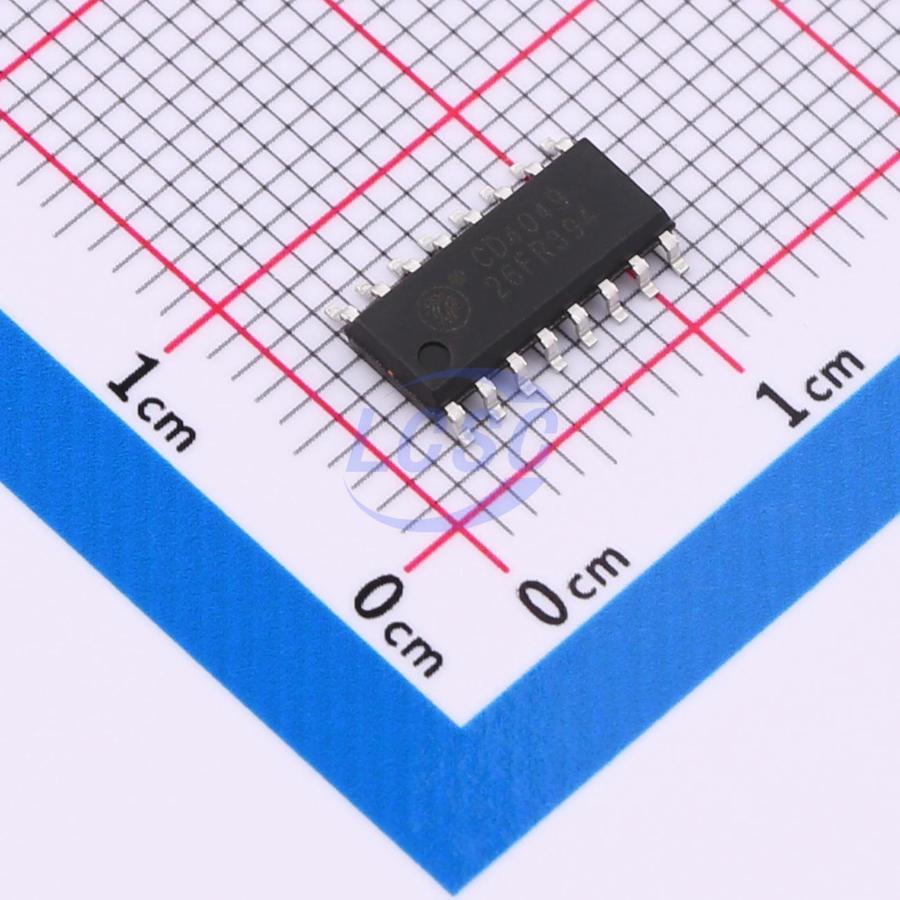

CD4049NS16ARDQ
StandardCMOS 1uA 6 SOP-16 Gates and Inverters
SOP-16RoHSActive
CMOS Hex Inverting Buffer and Converter
- Manufacturer
- GR
- Manufacturer part #
- CD4049NS16ARDQ
- Store part #
- C41414571
- Package / case
- SOP-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C41414571
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.28 | ₹86.40 |
| 50+ | ₹13.67 | ₹683.50 |
| 150+ | ₹11.85 | ₹1,777.50 |
| 500+ | ₹10.49 | ₹5,245.00 |
| 2,500+ | ₹9.41 | ₹23,525.00 |
| 4,000+ | ₹8.86 | ₹35,440.00 |
5 × ₹17.28
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4049NS16ARDQ
₹86.40 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 4000
- Output Logic Level - Low
- 50mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 4V
- Input Logic Level - Low
- 1V
- Output Logic Level - High
- 4.95V~5V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 7mA
- Current - Output Low(IOL)
- 7mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.347 g
Overview
The CD4049 and CD4050 devices are inverting and noninverting hex buffers, and feature logic-level conversion using only one supply voltage (VCC). The input-signal high level (VIH) can exceed the Vcc supply voltage when these devices are used for logiclevel conversions. These devices are intended for use as CMOS to DTL or TTL converters and can drive directly two DTL or TTL loads. (VCC = 5V, VOL ≤ 0.4V, and IOL ≥ 3.3mA.)
Key features
- High sink current for driving 2 TTL loads
- High-to-Low level logic conversion
- 100% tested for quiescent current at 18V
- Maximum input current of 1μA at 18V and 25°C
- 5V, 10V, and 15V parametric ratings
