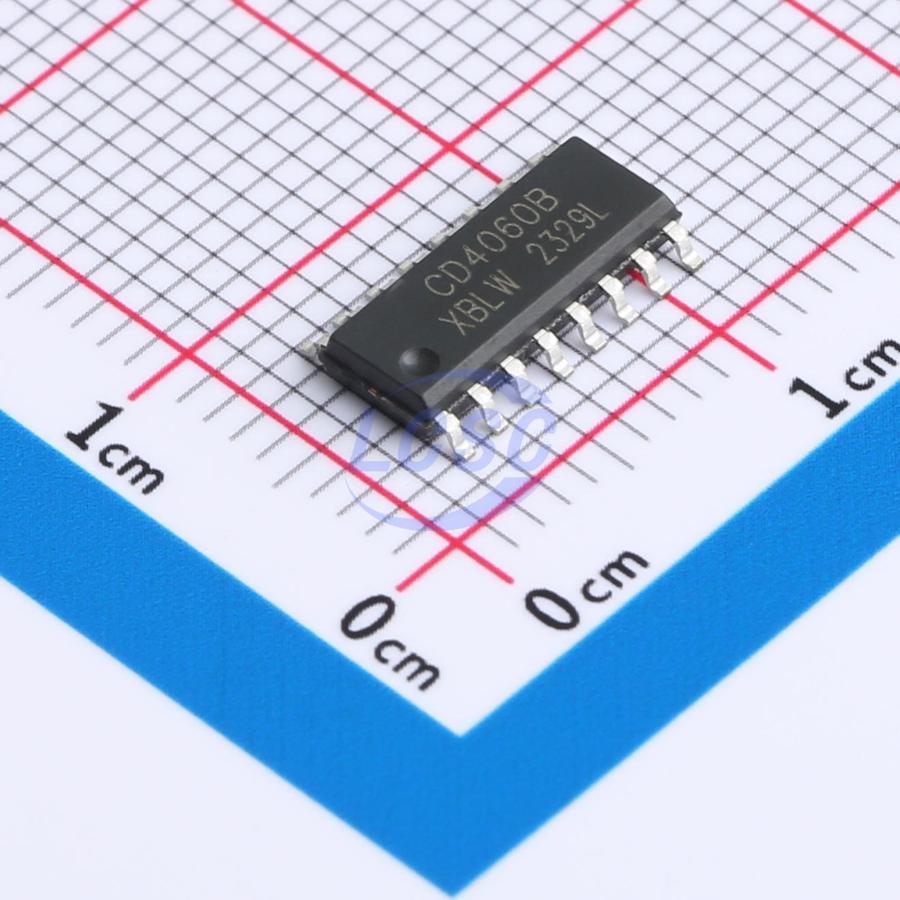

CD4060BDTR(XBLW)
Falling Edge 12MHz SOP-16 Counters, Dividers RoHS
14-stage Ripple-carry Binary Counter/Divider and Oscillator
- Manufacturer
- XBLW
- Manufacturer part #
- CD4060BDTR(XBLW)
- Store part #
- C18723493
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,855 in stock
#C18723493
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.63 | ₹78.15 |
| 50+ | ₹12.25 | ₹612.50 |
| 150+ | ₹10.56 | ₹1,584.00 |
| 500+ | ₹9.28 | ₹4,640.00 |
| 2,500+ | ₹8.27 | ₹20,675.00 |
| 5,000+ | ₹7.77 | ₹38,850.00 |
5 × ₹15.63
₹78.15
excl. GST
₹92.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4060BDTR(XBLW)
₹78.15 for 5 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Propagation Delay
- 100ns
- Count Rate
- 12MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.297 g
Overview
CD4060 is a 14-stage ripple-carry binary counter/divider and oscillator with three oscillator terminals (RS, REXT and CEXT), ten buffered outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset input (MR). The oscillator configuration allows design of either RC or crystal oscillator circuits. The oscillator maybe replaced by an external clock signal at input Rs. The counter advances on the negative-going transition of RS. A HIGH level on MR resets the counter (Q3 to Q9 and Q11 to Q13 = LOW), independent of Other input conditions. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually round). Unused inputs must be connected to VDD, VSS, or another input.
Applications
- Control counters
- Timers
- Frequency dividers
- Time-delay circuits
Key features
- Wide supply voltage range from 3V to 15V
- Tolerant of slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
