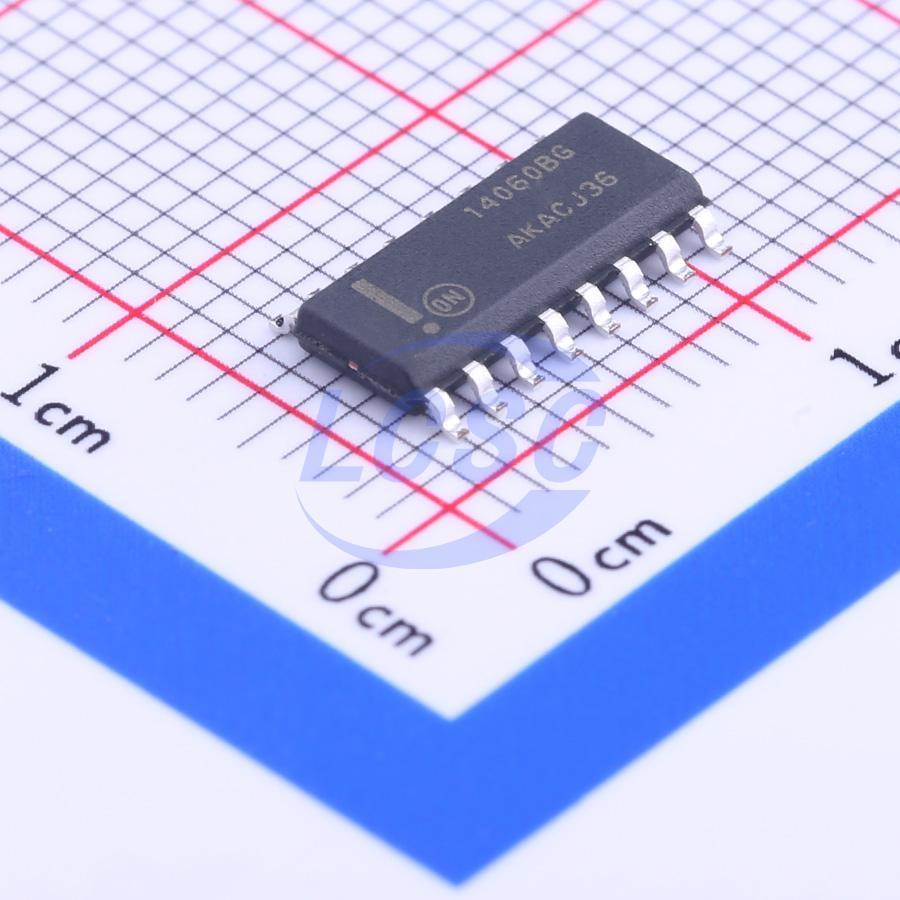

MC14060BDR2G
Falling Edge 1 17MHz SOIC-16 Counters, Dividers RoHS
14-Bit Binary Counter and Oscillator
- Manufacturer
- onsemi
- Manufacturer part #
- MC14060BDR2G
- Store part #
- C62404
- Package / case
- SOIC-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,290 in stock
#C62404
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.50 | ₹232.50 |
| 50+ | ₹37.06 | ₹1,853.00 |
| 150+ | ₹33.01 | ₹4,951.50 |
| 500+ | ₹27.97 | ₹13,985.00 |
| 2,500+ | ₹25.72 | ₹64,300.00 |
| 5,000+ | ₹24.37 | ₹1,21,850.00 |
5 × ₹46.50
₹232.50
excl. GST
₹274.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14060BDR2G
₹232.50 for 5 + GST
Specifications
- Logic Family
- MC14060B
- Voltage - Supply
- 3V~18V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Reset
- Asynchronous
- Operating Temperature
- -55℃~+125℃
- Number of Elements
- 1
- Propagation Delay
- 0.4us
- Count Rate
- 17MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.318 g
Overview
The MC14060B is a 14- stage binary ripple counter with an on- chip oscillator buffer. The oscillator configuration allows design of either RC or crystal oscillator circuits. Also included on the chip is a reset function which places all outputs into the zero state and disables the oscillator. A negative transition on Clock will advance the counter to the next state. Schmitt trigger action on the input line permits very slow input rise and fall times. Applications include time delay circuits, counter controls, and frequency dividing circuits.
Applications
- Time delay circuits
- Counter controls
- Frequency dividing circuits
Key features
- Fully Static Operation
- Diode Protection on All Inputs
- Supply Voltage Range = 3.0V to 18 V
- Capable of Driving Two Low- power TTL Loads or One Low- power Schottky TTL Load Over the Rated Temperature Range
- Buffered Outputs Available from Stages 4 Through 10 and 12 Through 14
- Common Reset Line
- Pin- for- Pin Replacement for CD4060B
- These Devices are Pb Free and are RoHS Compliant
