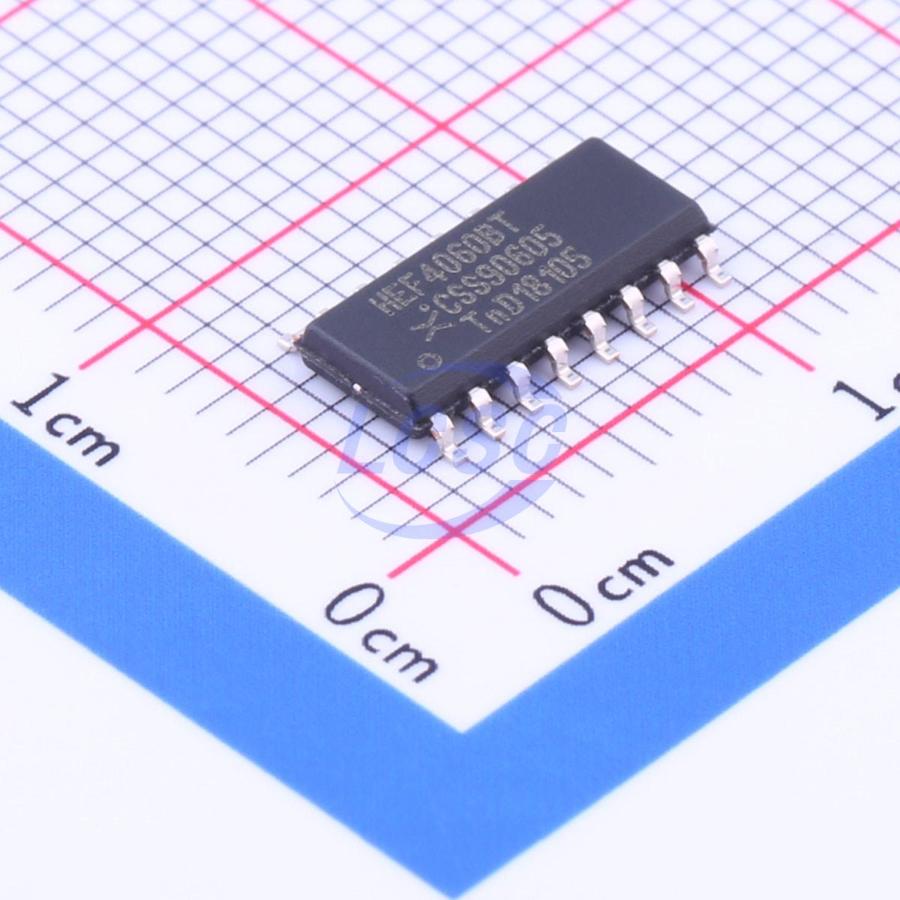

HEF4060BT,653
Falling Edge 1 30MHz SOIC-16 Counters, Dividers RoHS
14-stage ripple-carry binary counter/divider and oscillator
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4060BT,653
- Store part #
- C6737
- Package / case
- SOIC-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,410 in stock
#C6737
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.26 | ₹141.30 |
| 50+ | ₹21.99 | ₹1,099.50 |
| 150+ | ₹19.30 | ₹2,895.00 |
| 500+ | ₹15.96 | ₹7,980.00 |
| 2,500+ | ₹14.46 | ₹36,150.00 |
| 5,000+ | ₹13.57 | ₹67,850.00 |
5 × ₹28.26
₹141.30
excl. GST
₹166.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4060BT,653
₹141.30 for 5 + GST
Specifications
- Logic Family
- HEF
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 210ns
- Count Rate
- 30MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
The HEF4060B is a 14-stage ripple-carry counter/divider and oscillator with three oscillator terminals (RS, REXT and CEXT), ten buffered parallel outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset (MR). The oscillator configuration allows design of either RC or crystal oscillator circuits. The oscillator may be replaced by an external clock signal at input RS. In this case, keep the oscillator pins (REXT and CEXT) floating. The counter advances on the HIGH-to-LOW transition of RS. A HIGH level on MR clears all counter stages and forces all outputs LOW, independent of the other input conditions. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- RC oscillator circuit
- Crystal oscillator circuit
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Complies with JEDEC standard JESD 13-B
- Tolerant of slow clock rise and fall times
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Specified from -40 ℃ to +85 ℃
Alternatives
Similar parts — check the datasheet before substituting.
